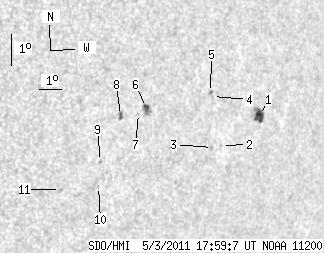

SDO HMI 2011-05-03 17:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.83 | 31.04 | 10.51 | 23.14 | -17.27 | 124.76 | 47.38 | 250.23 | 0.7482 | 82.5 | -39.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-03 17:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.19 | 12.49 | 7.22 | 9.80 | -16.99 | 127.60 | 50.22 | 251.26 | 0.7784 | 601.2 | 576.7 | |
| 0.00 | 1.16 | 0.00 | 0.89 | -18.00 | 126.11 | 48.73 | 249.64 | 0.7648 | 484.0 | 334.2 | |
| 0.00 | 1.07 | 0.00 | 0.81 | -18.09 | 125.71 | 48.33 | 249.44 | 0.7607 | 503.0 | 483.5 | |
| 0.00 | 0.80 | 0.00 | 0.60 | -16.52 | 125.16 | 47.78 | 251.37 | 0.7516 | 477.0 | 422.8 | |
| 0.00 | 1.78 | 0.00 | 1.33 | -16.40 | 125.03 | 47.65 | 251.50 | 0.7499 | 381.0 | 476.5 | |
| 3.66 | 7.14 | 2.60 | 5.09 | -17.00 | 122.28 | 44.91 | 250.04 | 0.7205 | -636.7 | -529.7 | |
| 0.00 | 0.80 | 0.00 | 0.57 | -17.20 | 121.99 | 44.61 | 249.69 | 0.7177 | -644.0 | -497.4 | |
| 0.98 | 2.86 | 0.69 | 2.00 | -17.30 | 121.22 | 43.84 | 249.34 | 0.7091 | -757.4 | -658.8 | |
| 0.00 | 0.89 | 0.00 | 0.62 | -18.76 | 120.80 | 43.42 | 247.20 | 0.7083 | -572.0 | -527.0 | |
| 0.00 | 0.98 | 0.00 | 0.69 | -19.54 | 120.97 | 43.59 | 246.18 | 0.7126 | -504.0 | -448.9 | |
| 0.00 | 1.07 | 0.00 | 0.74 | -19.71 | 119.35 | 41.98 | 245.39 | 0.6949 | -761.0 | -623.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
