SDO HMI 2011-05-03 17:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 18.04 | 0.00 | 12.47 | 13.86 | 118.09 | 40.71 | 294.72 | 0.6985 | -296.1 | -273.3 | |
|
previous
or next observation for the same group /

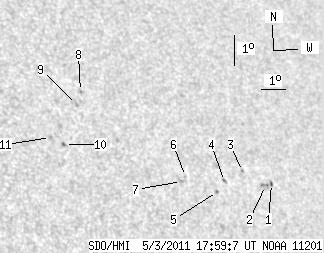

back to the solar disc SDO HMI 2011-05-03 17:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.70 | 0.00 | 1.24 | 13.34 | 121.79 | 44.42 | 292.20 | 0.7378 | -339.0 | -296.2 | |
| 0.00 | 2.95 | 0.00 | 2.14 | 13.26 | 121.51 | 44.14 | 292.22 | 0.7345 | -758.0 | -660.2 | |
| 0.00 | 1.34 | 0.00 | 0.96 | 13.66 | 120.61 | 43.24 | 293.13 | 0.7261 | 263.0 | 251.1 | |
| 0.00 | 1.87 | 0.00 | 1.32 | 13.31 | 119.77 | 42.39 | 293.04 | 0.7153 | 473.0 | 387.4 | |
| 0.00 | 1.43 | 0.00 | 1.00 | 12.97 | 119.40 | 42.03 | 292.76 | 0.7098 | 702.0 | 538.8 | |
| 0.00 | 1.07 | 0.00 | 0.74 | 13.39 | 118.16 | 40.78 | 293.90 | 0.6974 | -553.0 | -450.2 | |
| 0.00 | 1.34 | 0.00 | 0.92 | 13.22 | 117.96 | 40.59 | 293.77 | 0.6944 | -586.0 | -513.3 | |
| 0.00 | 1.70 | 0.00 | 1.13 | 15.92 | 114.47 | 37.09 | 299.37 | 0.6678 | -432.0 | -396.1 | |
| 0.00 | 1.34 | 0.00 | 0.88 | 15.50 | 114.22 | 36.85 | 298.94 | 0.6626 | -612.0 | -470.0 | |
| 0.00 | 1.78 | 0.00 | 1.16 | 14.19 | 113.50 | 36.12 | 297.57 | 0.6470 | -691.0 | -607.2 | |
| 0.00 | 1.52 | 0.00 | 0.98 | 14.39 | 112.99 | 35.62 | 298.17 | 0.6422 | -724.0 | -565.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
