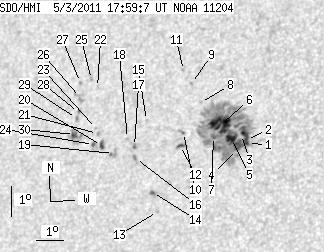

SDO HMI 2011-05-03 17:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.34 | 278.09 | 27.73 | 170.20 | 16.72 | 47.65 | -29.73 | 54.00 | 0.5887 | -139.5 | -203.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-03 17:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.16 | 216.87 | 0.69 | 131.37 | 16.24 | 49.47 | -27.91 | 53.10 | 0.5641 | -1040.0 | -405.7 | |
| 1.52 | -1.00 | 0.91 | -1.00 | 16.37 | 49.41 | -27.96 | 52.96 | 0.5658 | -1137.0 | 999999 | |
| 0.45 | -1.00 | 0.27 | -1.00 | 16.54 | 49.21 | -28.17 | 52.91 | 0.5695 | -1075.4 | 999999 | |
| 1.61 | -1.00 | 0.96 | -1.00 | 16.06 | 49.14 | -28.24 | 53.68 | 0.5664 | -975.1 | 999999 | |
| 5.80 | -1.00 | 3.50 | -1.00 | 16.43 | 48.87 | -28.51 | 53.40 | 0.5724 | -1067.6 | 999999 | |
| 21.33 | -1.00 | 12.96 | -1.00 | 16.89 | 48.40 | -28.98 | 53.15 | 0.5815 | -947.6 | 999999 | |
| 2.14 | -1.00 | 1.30 | -1.00 | 16.51 | 48.21 | -29.17 | 53.88 | 0.5807 | -503.8 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.60 | 17.63 | 47.54 | -29.84 | 52.87 | 0.5970 | -493.0 | -363.6 | |
| 0.00 | 1.07 | 0.00 | 0.67 | 18.27 | 47.09 | -30.29 | 52.38 | 0.6069 | -692.0 | -534.6 | |
| 0.98 | 2.59 | 0.60 | 1.59 | 16.68 | 47.09 | -30.29 | 54.61 | 0.5949 | -404.7 | -403.2 | |
| 0.00 | 0.98 | 0.00 | 0.62 | 18.71 | 46.70 | -30.67 | 52.12 | 0.6145 | -395.0 | -383.0 | |
| 1.61 | 4.46 | 0.99 | 2.74 | 16.26 | 47.05 | -30.33 | 55.24 | 0.5922 | 745.9 | 515.7 | |
| 0.00 | 0.98 | 0.00 | 0.60 | 14.18 | 46.55 | -30.83 | 58.75 | 0.5834 | 835.0 | 483.4 | |
| 1.78 | 2.14 | 1.09 | 1.31 | 14.79 | 46.27 | -31.11 | 58.05 | 0.5909 | 813.6 | 847.8 | |
| 0.00 | 0.89 | 0.00 | 0.56 | 17.12 | 45.64 | -31.74 | 55.19 | 0.6146 | 683.0 | 583.2 | |
| 0.00 | 2.95 | 0.00 | 1.83 | 15.91 | 45.46 | -31.92 | 57.06 | 0.6082 | 864.0 | 719.0 | |
| 0.00 | 2.32 | 0.00 | 1.45 | 16.30 | 45.35 | -32.03 | 56.59 | 0.6121 | 964.0 | 822.2 | |
| 0.00 | 1.07 | 0.00 | 0.67 | 16.56 | 45.04 | -32.34 | 56.45 | 0.6175 | 731.0 | 537.3 | |
| 0.00 | 4.91 | 0.00 | 3.09 | 16.10 | 44.60 | -32.78 | 57.44 | 0.6194 | 675.0 | 628.8 | |
| 2.95 | 3.75 | 1.87 | 2.38 | 16.38 | 44.10 | -33.28 | 57.42 | 0.6270 | 823.0 | 761.4 | |
| 0.00 | 1.43 | 0.00 | 0.91 | 16.77 | 43.87 | -33.51 | 57.04 | 0.6323 | 724.0 | 556.1 | |
| 0.00 | 1.70 | 0.00 | 1.10 | 18.27 | 43.55 | -33.83 | 55.23 | 0.6458 | 676.0 | 524.4 | |
| 0.00 | 0.80 | 0.00 | 0.51 | 16.94 | 43.80 | -33.58 | 56.87 | 0.6341 | 453.0 | 443.2 | |
| 0.62 | 3.48 | 0.40 | 2.21 | 16.42 | 43.78 | -33.59 | 57.59 | 0.6309 | 772.6 | 607.4 | |
| 0.00 | 0.98 | 0.00 | 0.64 | 18.55 | 43.26 | -34.12 | 55.08 | 0.6509 | 734.0 | 635.0 | |
| 0.00 | 6.34 | 0.00 | 4.12 | 17.97 | 42.96 | -34.42 | 56.06 | 0.6503 | 701.0 | 579.4 | |
| 0.00 | 1.16 | 0.00 | 0.76 | 18.46 | 42.85 | -34.53 | 55.49 | 0.6547 | 676.0 | 588.2 | |
| 0.00 | 1.16 | 0.00 | 0.75 | 17.48 | 42.99 | -34.39 | 56.70 | 0.6468 | 783.0 | 653.2 | |
| 0.00 | 1.96 | 0.00 | 1.27 | 17.29 | 42.96 | -34.42 | 56.99 | 0.6459 | 661.0 | 493.2 | |
| 3.39 | 13.12 | 2.19 | 8.45 | 16.77 | 42.99 | -34.39 | 57.67 | 0.6422 | 742.5 | 548.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
