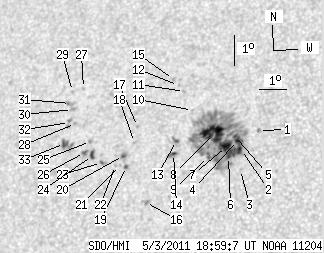

SDO HMI 2011-05-03 18:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 47.92 | 283.54 | 29.22 | 172.44 | 16.75 | 47.74 | -29.08 | 53.39 | 0.5815 | -185.6 | -222.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-03 18:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.52 | 0.00 | 0.90 | 16.92 | 50.02 | -26.81 | 51.03 | 0.5571 | -885.0 | -763.2 | |
| 1.07 | 221.07 | 0.64 | 133.19 | 16.32 | 49.51 | -27.32 | 52.42 | 0.5579 | -1149.6 | -401.1 | |
| 0.00 | 0.80 | 0.00 | 0.48 | 15.68 | 49.57 | -27.26 | 53.32 | 0.5519 | -798.0 | -585.7 | |
| 1.87 | -2.00 | 1.12 | -2.00 | 16.62 | 49.32 | -27.51 | 52.16 | 0.5625 | -1188.2 | 999999 | |
| 1.52 | -2.00 | 0.91 | -2.00 | 16.78 | 49.19 | -27.64 | 52.05 | 0.5654 | -896.0 | 999999 | |
| 1.34 | -2.00 | 0.80 | -2.00 | 16.11 | 49.08 | -27.75 | 53.15 | 0.5611 | -972.3 | 999999 | |
| 4.64 | -2.00 | 2.78 | -2.00 | 16.44 | 48.96 | -27.87 | 52.78 | 0.5652 | -1116.4 | 999999 | |
| 22.31 | -2.00 | 13.48 | -2.00 | 16.88 | 48.42 | -28.40 | 52.65 | 0.5748 | -952.9 | 999999 | |
| 1.07 | -2.00 | 0.64 | -2.00 | 16.14 | 48.36 | -28.46 | 53.78 | 0.5696 | -515.5 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.44 | 17.65 | 47.53 | -29.30 | 52.36 | 0.5911 | -384.0 | -344.0 | |
| 0.00 | 1.43 | 0.00 | 0.88 | 18.28 | 47.12 | -29.71 | 51.85 | 0.6006 | -705.0 | -498.3 | |
| 0.00 | 0.80 | 0.00 | 0.50 | 18.49 | 46.86 | -29.97 | 51.80 | 0.6050 | -605.0 | -432.2 | |
| 1.43 | 2.68 | 0.87 | 1.64 | 16.70 | 47.11 | -29.71 | 54.09 | 0.5883 | -489.5 | -443.6 | |
| 1.16 | 4.73 | 0.71 | 2.89 | 16.28 | 47.07 | -29.75 | 54.73 | 0.5856 | 653.2 | 556.1 | |
| 0.00 | 1.34 | 0.00 | 0.83 | 18.69 | 46.63 | -30.19 | 51.72 | 0.6091 | -505.0 | -406.8 | |
| 0.00 | 3.03 | 0.00 | 1.85 | 14.74 | 46.31 | -30.52 | 57.65 | 0.5835 | 915.0 | 708.7 | |
| 0.00 | 1.07 | 0.00 | 0.67 | 17.20 | 45.59 | -31.24 | 54.67 | 0.6094 | 802.0 | 643.8 | |
| 0.00 | 1.25 | 0.00 | 0.78 | 16.69 | 45.57 | -31.25 | 55.41 | 0.6059 | 538.0 | 500.6 | |
| 1.25 | 2.41 | 0.77 | 1.49 | 15.92 | 45.41 | -31.41 | 56.63 | 0.6023 | 789.1 | 620.2 | |
| 1.25 | 4.02 | 0.78 | 2.50 | 16.28 | 45.24 | -31.58 | 56.26 | 0.6068 | 959.4 | 761.8 | |
| 0.00 | 0.80 | 0.00 | 0.50 | 15.96 | 45.19 | -31.64 | 56.76 | 0.6052 | 681.0 | 630.9 | |
| 0.00 | 0.71 | 0.00 | 0.44 | 15.97 | 45.00 | -31.82 | 56.89 | 0.6075 | 684.0 | 462.8 | |
| 0.36 | 2.68 | 0.22 | 1.68 | 16.09 | 44.46 | -32.37 | 57.15 | 0.6145 | 852.5 | 723.5 | |
| 3.12 | 4.37 | 1.97 | 2.76 | 16.33 | 44.08 | -32.75 | 57.10 | 0.6206 | 795.5 | 715.6 | |
| 0.00 | 1.70 | 0.00 | 1.07 | 16.78 | 43.91 | -32.91 | 56.58 | 0.6255 | 725.0 | 604.7 | |
| 1.78 | 3.03 | 1.13 | 1.92 | 16.43 | 43.76 | -33.07 | 57.19 | 0.6250 | 737.3 | 586.7 | |
| 0.00 | 1.34 | 0.00 | 0.87 | 18.52 | 43.28 | -33.54 | 54.68 | 0.6444 | 712.0 | 538.3 | |
| 0.00 | 1.16 | 0.00 | 0.74 | 17.39 | 43.22 | -33.60 | 56.26 | 0.6374 | 679.0 | 600.5 | |
| 0.00 | 1.25 | 0.00 | 0.81 | 18.44 | 42.88 | -33.95 | 55.09 | 0.6483 | 770.0 | 588.3 | |
| 0.00 | 2.50 | 0.00 | 1.61 | 17.85 | 43.01 | -33.82 | 55.79 | 0.6428 | 738.0 | 586.2 | |
| 0.00 | 3.39 | 0.00 | 2.19 | 18.05 | 42.89 | -33.94 | 55.61 | 0.6455 | 669.0 | 573.6 | |
| 0.00 | 3.84 | 0.00 | 2.47 | 17.43 | 42.98 | -33.84 | 56.38 | 0.6403 | 463.0 | 564.0 | |
| 3.75 | 9.91 | 2.40 | 6.34 | 16.76 | 42.93 | -33.89 | 57.34 | 0.6365 | 691.0 | 625.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
