SDO HMI 2011-05-03 19:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.64 | 23.63 | 3.37 | 16.97 | 13.45 | 119.48 | 43.21 | 292.95 | 0.7246 | -186.2 | -360.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-03 19:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |

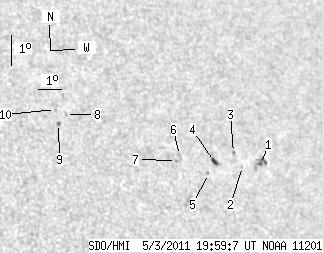

| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.34 | 9.19 | 1.00 | 6.84 | 13.30 | 121.69 | 45.42 | 291.74 | 0.7485 | -746.5 | -545.5 | |
| 0.00 | 0.71 | 0.00 | 0.52 | 13.20 | 120.87 | 44.60 | 291.94 | 0.7393 | -608.0 | -462.4 | |
| 0.00 | 0.98 | 0.00 | 0.72 | 13.62 | 120.58 | 44.31 | 292.61 | 0.7377 | 119.0 | 156.4 | |
| 3.30 | 4.46 | 2.37 | 3.21 | 13.30 | 119.68 | 43.41 | 292.57 | 0.7266 | 519.6 | 325.5 | |
| 0.00 | 1.16 | 0.00 | 0.83 | 12.90 | 119.34 | 43.07 | 292.20 | 0.7212 | 556.0 | 424.4 | |
| 0.00 | 2.32 | 0.00 | 1.63 | 13.41 | 118.22 | 41.95 | 293.38 | 0.7107 | -414.0 | -383.0 | |
| 0.00 | 1.25 | 0.00 | 0.87 | 13.25 | 118.06 | 41.79 | 293.23 | 0.7082 | -687.0 | -502.8 | |
| 0.00 | 0.80 | 0.00 | 0.53 | 14.51 | 113.82 | 37.55 | 297.16 | 0.6654 | -332.0 | -352.9 | |
| 0.00 | 1.87 | 0.00 | 1.23 | 14.21 | 113.48 | 37.21 | 296.94 | 0.6599 | -727.0 | -551.4 | |
| 0.00 | 0.89 | 0.00 | 0.59 | 14.66 | 113.45 | 37.18 | 297.57 | 0.6619 | -509.0 | -466.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
