SDO HMI 2011-05-03 19:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 54.90 | 292.31 | 33.08 | 176.65 | 16.64 | 47.89 | -28.38 | 52.90 | 0.5726 | -272.3 | -158.8 | |
|
previous
or next observation for the same group /

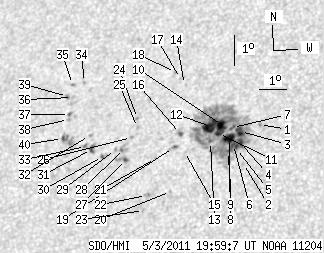

back to the solar disc SDO HMI 2011-05-03 19:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.43 | 0.00 | 0.85 | 16.90 | 49.99 | -26.28 | 50.51 | 0.5509 | -913.0 | -762.8 | |
| 0.00 | 1.43 | 0.00 | 0.84 | 15.66 | 49.61 | -26.66 | 52.76 | 0.5448 | -742.0 | -573.6 | |
| 5.62 | 226.35 | 3.35 | 135.59 | 16.70 | 49.35 | -26.92 | 51.47 | 0.5564 | -1047.6 | -371.5 | |
| 2.95 | -3.00 | 1.75 | -3.00 | 16.34 | 49.41 | -26.86 | 51.94 | 0.5528 | -1190.1 | 999999 | |
| 0.54 | -3.00 | 0.32 | -3.00 | 16.15 | 49.29 | -26.98 | 52.33 | 0.5525 | -955.3 | 999999 | |
| 3.75 | -3.00 | 2.23 | -3.00 | 16.29 | 49.17 | -27.10 | 52.26 | 0.5551 | -998.5 | 999999 | |
| 1.96 | -3.00 | 1.17 | -3.00 | 16.84 | 49.05 | -27.22 | 51.57 | 0.5611 | -781.0 | 999999 | |
| 8.03 | -3.00 | 4.79 | -3.00 | 16.49 | 49.00 | -27.27 | 52.14 | 0.5587 | -1084.8 | 999999 | |
| 1.16 | -3.00 | 0.69 | -3.00 | 16.07 | 49.02 | -27.25 | 52.73 | 0.5549 | -849.9 | 999999 | |
| 6.52 | -3.00 | 3.91 | -3.00 | 16.92 | 48.68 | -27.59 | 51.82 | 0.5659 | -1029.0 | 999999 | |
| 1.96 | -3.00 | 1.18 | -3.00 | 16.66 | 48.58 | -27.69 | 52.29 | 0.5649 | -910.2 | 999999 | |
| 12.50 | -3.00 | 7.52 | -3.00 | 16.90 | 48.25 | -28.02 | 52.25 | 0.5706 | -875.9 | 999999 | |
| 1.07 | -3.00 | 0.64 | -3.00 | 16.41 | 48.33 | -27.94 | 52.89 | 0.5657 | -688.7 | 999999 | |
| 0.00 | 0.45 | 0.00 | 0.27 | 18.30 | 47.07 | -29.20 | 51.37 | 0.5951 | -635.0 | -587.0 | |
| 0.00 | 0.62 | 0.00 | 0.38 | 16.12 | 47.45 | -28.82 | 54.14 | 0.5737 | -367.0 | -276.3 | |
| 0.80 | 2.59 | 0.49 | 1.57 | 16.71 | 47.21 | -29.06 | 53.50 | 0.5810 | -595.3 | -279.3 | |
| 0.00 | 0.89 | 0.00 | 0.55 | 18.50 | 46.89 | -29.38 | 51.26 | 0.5988 | -563.0 | -415.4 | |
| 0.00 | 0.98 | 0.00 | 0.61 | 18.71 | 46.66 | -29.61 | 51.18 | 0.6028 | -544.0 | -457.3 | |
| 0.00 | 3.57 | 0.00 | 2.17 | 16.26 | 47.03 | -29.24 | 54.31 | 0.5796 | 983.0 | 747.1 | |
| 0.00 | 0.80 | 0.00 | 0.48 | 14.85 | 47.14 | -29.13 | 56.31 | 0.5677 | 628.0 | 510.4 | |
| 0.00 | 0.89 | 0.00 | 0.54 | 15.93 | 46.43 | -29.84 | 55.32 | 0.5841 | 537.0 | 416.0 | |
| 0.00 | 2.59 | 0.00 | 1.57 | 14.75 | 46.29 | -29.98 | 57.19 | 0.5771 | 757.0 | 720.6 | |
| 0.00 | 1.52 | 0.00 | 0.92 | 14.28 | 46.25 | -30.02 | 57.94 | 0.5742 | 500.0 | 511.9 | |
| 0.00 | 1.25 | 0.00 | 0.78 | 17.25 | 45.54 | -30.73 | 54.18 | 0.6041 | 674.0 | 556.5 | |
| 0.00 | 1.34 | 0.00 | 0.83 | 16.96 | 45.59 | -30.68 | 54.55 | 0.6013 | 835.0 | 600.6 | |
| 0.00 | 1.43 | 0.00 | 0.88 | 16.64 | 45.43 | -30.84 | 55.13 | 0.6008 | 710.0 | 577.0 | |
| 1.70 | 5.44 | 1.04 | 3.36 | 15.94 | 45.33 | -30.94 | 56.23 | 0.5969 | 834.1 | 614.3 | |
| 0.00 | 5.80 | 0.00 | 3.59 | 16.30 | 45.24 | -31.04 | 55.79 | 0.6006 | 658.0 | 719.6 | |
| 0.00 | 1.34 | 0.00 | 0.83 | 16.28 | 44.91 | -31.36 | 56.09 | 0.6042 | 717.0 | 608.3 | |
| 1.07 | 1.43 | 0.67 | 0.89 | 16.07 | 44.46 | -31.81 | 56.74 | 0.6079 | 770.5 | 810.6 | |
| 3.12 | 6.78 | 1.96 | 4.26 | 16.31 | 44.01 | -32.26 | 56.75 | 0.6148 | 815.7 | 659.4 | |
| 0.00 | 1.07 | 0.00 | 0.67 | 16.77 | 43.85 | -32.42 | 56.23 | 0.6198 | 730.0 | 624.6 | |
| 0.00 | 1.87 | 0.00 | 1.18 | 16.42 | 43.77 | -32.50 | 56.79 | 0.6184 | 804.0 | 708.3 | |
| 0.00 | 1.16 | 0.00 | 0.74 | 18.51 | 43.30 | -32.97 | 54.27 | 0.6380 | 737.0 | 583.9 | |
| 0.00 | 1.61 | 0.00 | 1.04 | 18.46 | 42.86 | -33.41 | 54.67 | 0.6425 | 671.0 | 554.6 | |
| 0.00 | 1.61 | 0.00 | 1.03 | 18.03 | 42.95 | -33.32 | 55.18 | 0.6386 | 637.0 | 559.8 | |
| 0.45 | 1.25 | 0.29 | 0.80 | 17.48 | 42.95 | -33.32 | 55.93 | 0.6348 | 698.8 | 602.3 | |
| 0.00 | 1.52 | 0.00 | 0.97 | 17.32 | 42.95 | -33.32 | 56.15 | 0.6338 | 712.0 | 548.2 | |
| 0.00 | 2.05 | 0.00 | 1.32 | 18.07 | 42.75 | -33.52 | 55.27 | 0.6411 | 639.0 | 515.1 | |
| 1.70 | 11.25 | 1.08 | 7.14 | 16.71 | 42.84 | -33.43 | 57.07 | 0.6309 | 602.3 | 632.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
