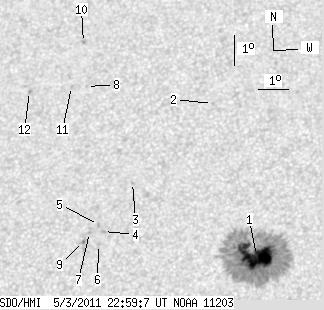

SDO HMI 2011-05-03 22:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.73 | 304.98 | 27.16 | 167.01 | 17.79 | 61.66 | -12.95 | 30.03 | 0.4276 | -681.7 | -366.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-03 22:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 49.73 | 289.45 | 27.16 | 158.08 | 17.63 | 61.96 | -12.65 | 29.71 | 0.4230 | -1222.8 | -432.0 | |
| 0.00 | 0.89 | 0.00 | 0.51 | 22.70 | 60.04 | -14.57 | 27.48 | 0.5048 | -663.0 | -554.8 | |
| 0.00 | 1.34 | 0.00 | 0.76 | 20.10 | 57.63 | -16.98 | 34.14 | 0.4906 | 709.0 | 578.4 | |
| 0.00 | 1.96 | 0.00 | 1.11 | 18.51 | 56.83 | -17.78 | 37.41 | 0.4785 | 822.0 | 682.6 | |
| 0.00 | 1.43 | 0.00 | 0.81 | 18.74 | 56.64 | -17.97 | 37.39 | 0.4831 | 838.0 | 734.9 | |
| 0.00 | 1.70 | 0.00 | 0.95 | 18.09 | 56.71 | -17.90 | 38.17 | 0.4747 | 695.0 | 584.5 | |
| 0.00 | 1.25 | 0.00 | 0.71 | 18.49 | 56.37 | -18.24 | 38.14 | 0.4826 | 858.0 | 666.7 | |
| 0.00 | 0.80 | 0.00 | 0.47 | 23.37 | 55.63 | -18.98 | 33.26 | 0.5464 | 611.0 | 525.8 | |
| 0.00 | 1.96 | 0.00 | 1.11 | 18.20 | 56.20 | -18.41 | 38.79 | 0.4809 | 854.0 | 699.6 | |
| 0.00 | 1.70 | 0.00 | 1.02 | 24.88 | 55.29 | -19.32 | 32.10 | 0.5669 | 841.0 | 636.9 | |
| 0.00 | 1.07 | 0.00 | 0.63 | 23.38 | 55.11 | -19.50 | 33.95 | 0.5508 | 775.0 | 669.8 | |
| 0.00 | 1.43 | 0.00 | 0.85 | 23.24 | 53.65 | -20.96 | 35.99 | 0.5614 | 857.0 | 711.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
