SDO HMI 2011-05-03 23:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 10.09 | 17.84 | 6.86 | 12.08 | 14.31 | 34.90 | -39.15 | 64.03 | 0.6830 | -453.8 | -335.0 | |
|
previous
or next observation for the same group /

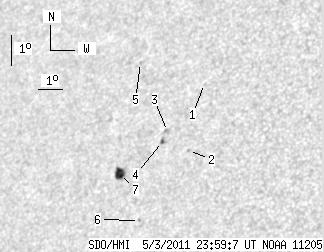

back to the solar disc SDO HMI 2011-05-03 23:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.59 | 16.52 | 37.03 | -37.03 | 59.80 | 0.6703 | -459.0 | -440.7 | |
| 0.00 | 0.71 | 0.00 | 0.47 | 14.39 | 36.85 | -37.21 | 62.83 | 0.6607 | 441.0 | 385.1 | |
| 0.00 | 2.05 | 0.00 | 1.38 | 15.04 | 35.88 | -38.17 | 62.50 | 0.6752 | -438.0 | -495.6 | |
| 1.52 | 2.23 | 1.02 | 1.50 | 14.72 | 35.75 | -38.31 | 63.00 | 0.6752 | 489.3 | 354.1 | |
| 0.00 | 0.98 | 0.00 | 0.68 | 17.32 | 34.24 | -39.81 | 60.40 | 0.7053 | -513.0 | -429.8 | |
| 0.00 | 1.07 | 0.00 | 0.71 | 12.25 | 35.31 | -38.75 | 66.67 | 0.6684 | -597.0 | -539.8 | |
| 8.57 | 9.91 | 5.84 | 6.75 | 13.78 | 34.21 | -39.84 | 65.12 | 0.6882 | -739.0 | -525.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
