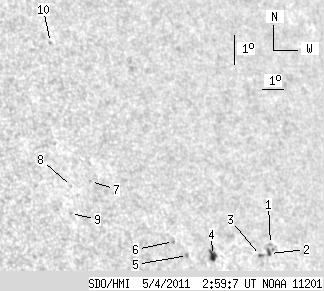

SDO HMI 2011-05-04 02:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.13 | 21.88 | 6.37 | 16.87 | 13.80 | 119.43 | 47.02 | 291.80 | 0.7670 | -118.4 | -283.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-04 02:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.16 | 0.00 | 0.95 | 13.67 | 122.36 | 49.95 | 290.51 | 0.7964 | -492.0 | -403.5 | |
| 1.70 | 4.65 | 1.38 | 3.77 | 13.38 | 122.23 | 49.82 | 290.20 | 0.7943 | -531.4 | -519.7 | |
| 1.34 | 2.32 | 1.08 | 1.87 | 13.29 | 121.77 | 49.36 | 290.25 | 0.7894 | -615.9 | -584.8 | |
| 5.09 | 6.97 | 3.91 | 5.35 | 13.17 | 119.49 | 47.08 | 290.91 | 0.7656 | 687.2 | 458.0 | |
| 0.00 | 1.70 | 0.00 | 1.27 | 13.11 | 118.34 | 45.94 | 291.27 | 0.7533 | -615.0 | -498.1 | |
| 0.00 | 1.07 | 0.00 | 0.80 | 13.53 | 117.82 | 45.41 | 292.00 | 0.7491 | -579.0 | -468.8 | |
| 0.00 | 0.98 | 0.00 | 0.70 | 15.28 | 114.64 | 42.24 | 295.65 | 0.7217 | -509.0 | -413.1 | |
| 0.00 | 0.71 | 0.00 | 0.50 | 15.08 | 113.79 | 41.39 | 295.81 | 0.7115 | -601.0 | -465.9 | |
| 0.00 | 1.16 | 0.00 | 0.81 | 14.21 | 113.55 | 41.15 | 294.78 | 0.7049 | -613.0 | -486.9 | |
| 0.00 | 1.16 | 0.00 | 0.85 | 19.75 | 114.21 | 41.81 | 301.53 | 0.7384 | 538.0 | 449.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
