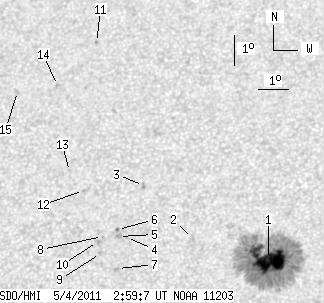

SDO HMI 2011-05-04 02:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.95 | 309.52 | 26.53 | 168.25 | 17.80 | 61.42 | -10.98 | 26.09 | 0.4128 | -609.8 | -355.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-04 02:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 48.95 | 286.93 | 26.53 | 155.47 | 17.63 | 61.85 | -10.55 | 25.50 | 0.4072 | -1283.4 | -447.1 | |
| 0.00 | 1.79 | 0.00 | 0.98 | 18.36 | 59.33 | -13.07 | 29.65 | 0.4357 | -770.0 | -580.8 | |
| 0.00 | 1.97 | 0.00 | 1.10 | 20.13 | 57.56 | -14.84 | 30.70 | 0.4730 | 856.0 | 694.8 | |
| 0.00 | 1.07 | 0.00 | 0.60 | 18.43 | 57.16 | -15.25 | 33.45 | 0.4545 | 775.0 | 576.8 | |
| 0.00 | 3.39 | 0.00 | 1.89 | 18.46 | 56.89 | -15.51 | 33.86 | 0.4573 | 890.0 | 796.0 | |
| 0.00 | 1.52 | 0.00 | 0.85 | 18.69 | 56.83 | -15.57 | 33.66 | 0.4606 | 930.0 | 815.8 | |
| 0.00 | 1.52 | 0.00 | 0.84 | 17.42 | 56.95 | -15.45 | 35.13 | 0.4436 | 936.0 | 770.2 | |
| 0.00 | 0.71 | 0.00 | 0.40 | 18.47 | 56.36 | -16.05 | 34.73 | 0.4620 | 857.0 | 680.8 | |
| 0.00 | 1.43 | 0.00 | 0.79 | 17.92 | 56.34 | -16.06 | 35.49 | 0.4553 | 758.0 | 603.4 | |
| 0.00 | 2.23 | 0.00 | 1.25 | 18.31 | 56.21 | -16.20 | 35.19 | 0.4614 | 752.0 | 660.3 | |
| 0.00 | 1.07 | 0.00 | 0.64 | 25.00 | 55.38 | -17.03 | 28.91 | 0.5512 | 777.0 | 694.3 | |
| 0.00 | 1.07 | 0.00 | 0.61 | 20.00 | 55.56 | -16.84 | 34.07 | 0.4878 | 681.0 | 576.9 | |
| 0.00 | 0.98 | 0.00 | 0.56 | 20.64 | 55.02 | -17.38 | 34.13 | 0.5003 | 553.0 | 475.3 | |
| 0.00 | 1.79 | 0.00 | 1.05 | 23.55 | 54.23 | -18.18 | 31.98 | 0.5420 | 669.0 | 539.0 | |
| 0.00 | 2.05 | 0.00 | 1.22 | 23.38 | 52.86 | -19.54 | 34.03 | 0.5509 | 672.0 | 536.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
