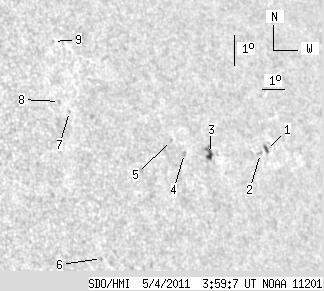

SDO HMI 2011-05-04 03:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.44 | 21.34 | 4.32 | 16.42 | 13.31 | 118.96 | 47.11 | 291.13 | 0.7658 | -283.8 | -168.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-04 03:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 2.05 | 3.04 | 1.69 | 2.50 | 13.45 | 122.29 | 50.43 | 290.08 | 0.8005 | -516.3 | -443.5 | |
| 0.00 | 2.14 | 0.00 | 1.75 | 13.31 | 121.95 | 50.10 | 290.02 | 0.7968 | -759.0 | -647.8 | |
| 3.39 | 9.02 | 2.63 | 6.99 | 13.14 | 119.49 | 47.63 | 290.67 | 0.7713 | 700.2 | 417.8 | |
| 0.00 | 1.88 | 0.00 | 1.42 | 13.12 | 118.34 | 46.48 | 291.06 | 0.7591 | -542.0 | -431.4 | |
| 0.00 | 1.25 | 0.00 | 0.94 | 13.50 | 117.84 | 45.99 | 291.73 | 0.7552 | -594.0 | -448.7 | |
| 0.00 | 0.98 | 0.00 | 0.68 | 9.63 | 114.05 | 42.20 | 288.10 | 0.6990 | -469.0 | -380.2 | |
| 0.00 | 0.80 | 0.00 | 0.57 | 14.21 | 113.59 | 41.74 | 294.50 | 0.7115 | -511.0 | -479.0 | |
| 0.00 | 1.52 | 0.00 | 1.06 | 14.51 | 113.24 | 41.39 | 295.06 | 0.7089 | -719.0 | -515.8 | |
| 0.00 | 0.71 | 0.00 | 0.51 | 16.44 | 113.46 | 41.61 | 297.46 | 0.7201 | -588.0 | -505.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
