SDO HMI 2011-05-04 06:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 13.75 | 35.92 | 11.85 | 30.18 | -16.98 | 123.57 | 53.37 | 251.73 | 0.8096 | -118.1 | -179.1 | |
|
previous
or next observation for the same group /

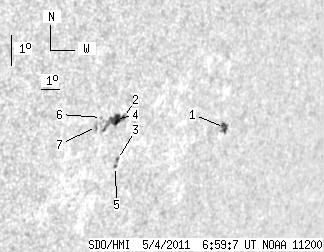

back to the solar disc SDO HMI 2011-05-04 06:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.91 | 7.06 | 4.63 | 6.66 | -16.78 | 128.25 | 58.05 | 252.65 | 0.8531 | 482.1 | 396.9 | |
| 1.07 | 21.44 | 0.88 | 17.46 | -16.77 | 122.62 | 52.41 | 251.87 | 0.8006 | -285.5 | -380.3 | |
| 0.00 | 2.06 | 0.00 | 1.71 | -18.07 | 122.84 | 52.63 | 250.30 | 0.8048 | 674.0 | 530.5 | |
| 7.77 | -2.00 | 6.34 | -2.00 | -16.85 | 122.24 | 52.03 | 251.70 | 0.7969 | -565.2 | 999999 | |
| 0.00 | 1.70 | 0.00 | 1.41 | -18.30 | 122.83 | 52.62 | 250.02 | 0.8050 | 434.0 | 388.8 | |
| 0.00 | 1.07 | 0.00 | 0.86 | -16.82 | 121.51 | 51.30 | 251.61 | 0.7895 | -576.0 | -485.2 | |
| 0.00 | 2.59 | 0.00 | 2.08 | -17.11 | 121.37 | 51.16 | 251.22 | 0.7885 | -802.0 | -590.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
