SDO HMI 2011-05-04 06:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 43.15 | 315.66 | 23.23 | 170.34 | 17.75 | 61.47 | -8.74 | 21.40 | 0.3970 | -666.9 | -382.5 | |
|
previous
or next observation for the same group /

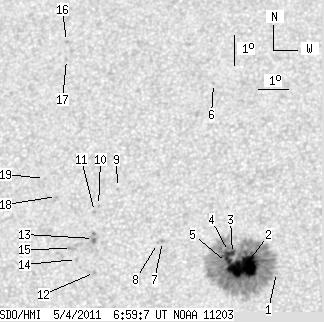

back to the solar disc SDO HMI 2011-05-04 06:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.57 | 17.41 | 62.90 | -7.31 | 18.51 | 0.3838 | -116.0 | -130.1 | |
| 39.31 | 293.96 | 21.16 | 158.28 | 17.58 | 61.84 | -8.37 | 20.81 | 0.3921 | -1427.6 | -459.7 | |
| 1.61 | -2.00 | 0.87 | -2.00 | 18.04 | 61.46 | -8.74 | 21.21 | 0.4012 | -833.8 | 999999 | |
| 0.98 | -2.00 | 0.53 | -2.00 | 18.10 | 61.33 | -8.88 | 21.44 | 0.4029 | -896.7 | 999999 | |
| 1.25 | -2.00 | 0.67 | -2.00 | 17.75 | 61.29 | -8.92 | 21.89 | 0.3979 | -1023.7 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.41 | 23.71 | 60.49 | -9.72 | 18.50 | 0.4893 | -667.0 | -473.1 | |
| 0.00 | 1.70 | 0.00 | 0.93 | 18.46 | 59.18 | -11.03 | 25.60 | 0.4217 | -735.0 | -559.2 | |
| 0.00 | 0.45 | 0.00 | 0.24 | 18.39 | 59.02 | -11.19 | 25.99 | 0.4219 | -427.0 | -352.6 | |
| 0.00 | 0.36 | 0.00 | 0.20 | 20.26 | 57.57 | -12.64 | 26.75 | 0.4579 | 483.0 | 599.2 | |
| 0.00 | 1.07 | 0.00 | 0.60 | 19.67 | 56.99 | -13.22 | 28.42 | 0.4541 | 815.0 | 603.4 | |
| 0.00 | 1.34 | 0.00 | 0.74 | 19.48 | 56.88 | -13.33 | 28.85 | 0.4524 | 780.0 | 556.5 | |
| 0.00 | 1.70 | 0.00 | 0.93 | 17.48 | 57.04 | -13.17 | 30.96 | 0.4243 | 908.0 | 676.1 | |
| 0.00 | 4.82 | 0.00 | 2.66 | 18.59 | 56.92 | -13.29 | 29.81 | 0.4402 | 937.0 | 839.3 | |
| 0.00 | 1.34 | 0.00 | 0.74 | 17.91 | 56.41 | -13.79 | 31.57 | 0.4352 | 838.0 | 660.1 | |
| 0.00 | 2.95 | 0.00 | 1.63 | 18.27 | 56.22 | -13.99 | 31.46 | 0.4415 | 889.0 | 638.1 | |
| 0.00 | 1.07 | 0.00 | 0.63 | 25.24 | 55.33 | -14.87 | 25.61 | 0.5393 | 742.0 | 699.1 | |
| 0.00 | 1.25 | 0.00 | 0.73 | 24.61 | 55.41 | -14.80 | 26.06 | 0.5307 | 724.0 | 527.6 | |
| 0.00 | 0.98 | 0.00 | 0.55 | 19.99 | 55.57 | -14.64 | 30.54 | 0.4692 | 694.0 | 495.9 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 20.60 | 55.11 | -15.10 | 30.61 | 0.4807 | 735.0 | 593.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
