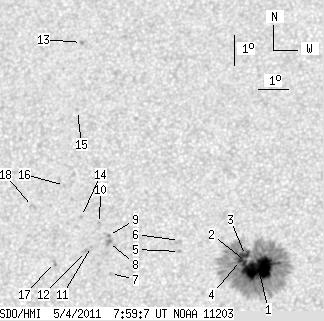

SDO HMI 2011-05-04 07:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.55 | 328.18 | 25.02 | 176.87 | 17.79 | 61.36 | -8.31 | 20.36 | 0.3952 | -716.7 | -364.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-04 07:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 40.21 | 304.95 | 21.61 | 163.98 | 17.61 | 61.83 | -7.83 | 19.55 | 0.3895 | -1416.2 | -432.8 | |
| 0.80 | -1.00 | 0.43 | -1.00 | 17.84 | 61.41 | -8.25 | 20.31 | 0.3954 | -942.0 | 999999 | |
| 3.31 | -1.00 | 1.78 | -1.00 | 18.04 | 61.40 | -8.26 | 20.15 | 0.3983 | -862.5 | 999999 | |
| 2.23 | -1.00 | 1.20 | -1.00 | 17.88 | 61.24 | -8.42 | 20.64 | 0.3968 | -928.2 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 18.19 | 59.26 | -10.40 | 24.60 | 0.4136 | -825.0 | -678.2 | |
| 0.00 | 1.16 | 0.00 | 0.63 | 18.55 | 59.24 | -10.42 | 24.27 | 0.4189 | -581.0 | -453.0 | |
| 0.00 | 1.34 | 0.00 | 0.73 | 17.51 | 57.07 | -12.59 | 29.81 | 0.4200 | 912.0 | 708.4 | |
| 0.00 | 3.40 | 0.00 | 1.87 | 18.52 | 56.93 | -12.73 | 28.85 | 0.4348 | 1010.0 | 881.7 | |
| 0.00 | 1.52 | 0.00 | 0.84 | 18.75 | 56.91 | -12.75 | 28.62 | 0.4381 | 951.0 | 799.4 | |
| 0.00 | 1.25 | 0.00 | 0.69 | 19.15 | 56.59 | -13.08 | 28.77 | 0.4459 | 639.0 | 517.5 | |
| 0.00 | 0.71 | 0.00 | 0.39 | 18.40 | 56.38 | -13.28 | 30.02 | 0.4374 | 956.0 | 791.9 | |
| 0.00 | 3.13 | 0.00 | 1.72 | 18.24 | 56.23 | -13.43 | 30.50 | 0.4365 | 866.0 | 632.1 | |
| 0.00 | 1.70 | 0.00 | 0.99 | 25.27 | 55.37 | -14.29 | 24.72 | 0.5359 | 820.0 | 662.1 | |
| 0.00 | 1.16 | 0.00 | 0.65 | 19.39 | 55.97 | -13.69 | 29.60 | 0.4538 | 729.0 | 553.8 | |
| 0.00 | 1.16 | 0.00 | 0.67 | 22.94 | 55.50 | -14.16 | 26.65 | 0.5044 | 610.0 | 466.8 | |
| 0.00 | 1.16 | 0.00 | 0.65 | 20.42 | 55.31 | -14.35 | 29.56 | 0.4726 | 592.0 | 448.3 | |
| 0.00 | 1.97 | 0.00 | 1.08 | 17.90 | 55.21 | -14.45 | 32.78 | 0.4404 | -569.0 | -419.1 | |
| 0.00 | 2.59 | 0.00 | 1.45 | 19.75 | 54.31 | -15.35 | 32.02 | 0.4717 | -191.0 | -254.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
