SDO HMI 2011-05-04 08:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 8.48 | 36.53 | 7.09 | 31.47 | -17.13 | 123.49 | 54.38 | 251.70 | 0.8195 | -147.5 | -24.0 | |
|
previous
or next observation for the same group /

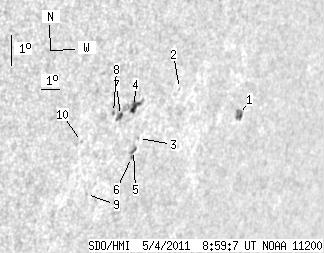

back to the solar disc SDO HMI 2011-05-04 08:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 6.70 | 0.00 | 6.53 | -16.77 | 128.31 | 59.20 | 252.78 | 0.8630 | 650.0 | 454.2 | |
| 0.00 | 0.71 | 0.00 | 0.63 | -16.16 | 124.50 | 55.39 | 253.04 | 0.8286 | 380.0 | 376.4 | |
| 0.00 | 1.07 | 0.00 | 0.91 | -17.81 | 122.97 | 53.85 | 250.82 | 0.8162 | 608.0 | 513.8 | |
| 6.16 | 21.00 | 5.17 | 17.50 | -16.84 | 122.34 | 53.23 | 251.90 | 0.8087 | -449.2 | -415.9 | |
| 0.00 | 2.59 | 0.00 | 2.21 | -18.20 | 122.87 | 53.75 | 250.33 | 0.8158 | 642.0 | 520.7 | |
| 0.00 | 1.16 | 0.00 | 0.99 | -18.42 | 122.86 | 53.75 | 250.06 | 0.8160 | 288.0 | 329.2 | |
| 2.32 | -4.00 | 1.92 | -4.00 | -17.16 | 121.73 | 52.62 | 251.41 | 0.8032 | -378.7 | 999999 | |
| 0.00 | 1.79 | 0.00 | 1.47 | -17.08 | 121.33 | 52.22 | 251.44 | 0.7992 | -707.0 | -569.2 | |
| 0.00 | 0.80 | 0.00 | 0.66 | -19.68 | 121.04 | 51.93 | 248.16 | 0.8008 | -416.0 | -378.7 | |
| 0.00 | 0.71 | 0.00 | 0.57 | -18.06 | 120.08 | 50.97 | 249.99 | 0.7882 | -622.0 | -552.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
