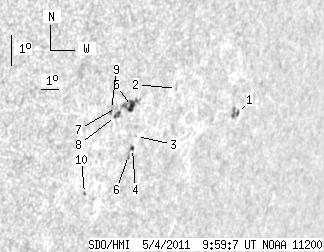

SDO HMI 2011-05-04 09:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.38 | 36.73 | 8.18 | 32.05 | -17.14 | 123.52 | 54.96 | 251.76 | 0.8250 | -97.5 | -74.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-04 09:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.43 | 6.61 | 1.42 | 6.54 | -16.76 | 128.51 | 59.94 | 252.87 | 0.8692 | 230.8 | 477.1 | |
| 0.00 | 1.07 | 0.00 | 0.96 | -16.20 | 124.53 | 55.96 | 253.07 | 0.8339 | 503.0 | 395.1 | |
| 0.00 | 0.63 | 0.00 | 0.54 | -17.78 | 123.00 | 54.43 | 250.95 | 0.8216 | 607.0 | 522.1 | |
| 1.52 | 1.97 | 1.31 | 1.70 | -18.16 | 122.95 | 54.39 | 250.48 | 0.8217 | 506.6 | 436.8 | |
| 5.18 | 17.96 | 4.40 | 15.17 | -16.88 | 122.33 | 53.77 | 251.94 | 0.8141 | -482.7 | -376.2 | |
| 0.00 | 2.50 | 0.00 | 2.16 | -18.39 | 122.84 | 54.27 | 250.19 | 0.8210 | 694.0 | 509.1 | |
| 0.00 | 1.70 | 0.00 | 1.42 | -16.95 | 121.56 | 53.00 | 251.73 | 0.8067 | -649.0 | -574.3 | |
| 1.25 | -5.00 | 1.05 | -5.00 | -17.23 | 121.63 | 53.06 | 251.40 | 0.8077 | -397.3 | 999999 | |
| 0.00 | 3.22 | 0.00 | 2.67 | -17.02 | 121.33 | 52.77 | 251.60 | 0.8045 | -538.0 | -508.3 | |
| 0.00 | 1.07 | 0.00 | 0.89 | -19.69 | 121.07 | 52.51 | 248.28 | 0.8063 | -450.0 | -352.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
