SDO HMI 2011-05-04 09:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 65.48 | 334.65 | 37.01 | 189.58 | 16.76 | 48.04 | -20.53 | 43.85 | 0.4859 | -192.8 | -168.7 | |
|
previous
or next observation for the same group /

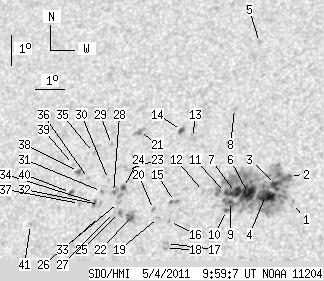

back to the solar disc SDO HMI 2011-05-04 09:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.59 | 0.00 | 1.44 | 16.29 | 50.40 | -18.16 | 41.24 | 0.4557 | -956.0 | -776.9 | |
| 1.52 | 249.79 | 0.85 | 140.38 | 17.20 | 50.21 | -18.35 | 40.19 | 0.4679 | 315.5 | -438.2 | |
| 7.50 | -2.00 | 4.20 | -2.00 | 16.92 | 49.78 | -18.79 | 41.26 | 0.4692 | -890.5 | 999999 | |
| 16.17 | -2.00 | 9.05 | -2.00 | 16.57 | 49.48 | -19.09 | 42.22 | 0.4684 | -1134.2 | 999999 | |
| 0.00 | 1.70 | 0.00 | 0.99 | 21.61 | 48.65 | -19.91 | 36.61 | 0.5331 | 636.0 | 476.9 | |
| 18.31 | -2.00 | 10.30 | -2.00 | 16.65 | 48.90 | -19.66 | 42.94 | 0.4752 | -1014.7 | 999999 | |
| 7.42 | -2.00 | 4.18 | -2.00 | 16.69 | 48.46 | -20.11 | 43.49 | 0.4803 | -937.8 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.72 | 19.44 | 48.09 | -20.47 | 40.12 | 0.5139 | -735.0 | -614.4 | |
| 1.43 | -2.00 | 0.81 | -2.00 | 16.41 | 48.32 | -20.24 | 44.12 | 0.4787 | -872.6 | 999999 | |
| 0.71 | -2.00 | 0.40 | -2.00 | 16.12 | 48.22 | -20.35 | 44.70 | 0.4768 | -771.6 | 999999 | |
| 1.97 | -2.00 | 1.11 | -2.00 | 16.70 | 48.12 | -20.44 | 43.95 | 0.4840 | -721.5 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.81 | 16.75 | 47.37 | -21.19 | 44.88 | 0.4925 | -339.0 | -216.5 | |
| 0.00 | 4.02 | 0.00 | 2.32 | 18.52 | 46.77 | -21.79 | 43.10 | 0.5172 | -122.0 | -274.6 | |
| 2.41 | 3.22 | 1.40 | 1.87 | 18.76 | 46.36 | -22.20 | 43.29 | 0.5238 | -733.4 | -576.8 | |
| 0.00 | 3.39 | 0.00 | 1.94 | 16.45 | 46.42 | -22.14 | 46.56 | 0.4998 | 877.0 | 653.2 | |
| 0.00 | 1.34 | 0.00 | 0.76 | 15.81 | 46.33 | -22.24 | 47.66 | 0.4946 | 634.0 | 626.3 | |
| 0.00 | 2.50 | 0.00 | 1.42 | 15.11 | 46.31 | -22.26 | 48.80 | 0.4880 | 806.0 | 672.0 | |
| 0.00 | 1.79 | 0.00 | 1.01 | 14.95 | 46.29 | -22.27 | 49.08 | 0.4866 | 969.0 | 682.6 | |
| 0.00 | 1.43 | 0.00 | 0.82 | 15.95 | 45.94 | -22.63 | 47.93 | 0.5003 | 794.0 | 613.8 | |
| 0.00 | 1.70 | 0.00 | 0.97 | 16.22 | 45.74 | -22.83 | 47.78 | 0.5051 | 819.0 | 685.7 | |
| 0.00 | 5.63 | 0.00 | 3.31 | 18.77 | 44.90 | -23.66 | 45.05 | 0.5390 | 796.0 | 710.6 | |
| 0.00 | 8.84 | 0.00 | 5.09 | 16.01 | 45.01 | -23.56 | 48.96 | 0.5114 | 1095.0 | 806.3 | |
| 0.00 | 3.84 | 0.00 | 2.24 | 17.54 | 44.67 | -23.90 | 47.08 | 0.5296 | 700.0 | 596.6 | |
| 1.25 | 11.26 | 0.73 | 6.54 | 16.96 | 44.61 | -23.96 | 48.00 | 0.5247 | 917.4 | 742.6 | |
| 1.43 | 2.68 | 0.83 | 1.55 | 16.15 | 44.58 | -23.99 | 49.25 | 0.5175 | 889.2 | 734.6 | |
| 0.00 | 2.32 | 0.00 | 1.35 | 16.48 | 44.50 | -24.07 | 48.84 | 0.5214 | 827.0 | 641.4 | |
| 0.00 | 0.89 | 0.00 | 0.52 | 16.16 | 44.40 | -24.16 | 49.44 | 0.5196 | 781.0 | 687.6 | |
| 1.16 | -24.00 | 0.68 | -24.00 | 16.80 | 44.28 | -24.28 | 48.60 | 0.5269 | 800.0 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.79 | 18.37 | 43.99 | -24.58 | 46.67 | 0.5448 | 721.0 | 536.7 | |
| 0.00 | 0.89 | 0.00 | 0.52 | 17.23 | 44.05 | -24.52 | 48.23 | 0.5335 | 518.0 | 451.2 | |
| 0.00 | 1.25 | 0.00 | 0.73 | 16.85 | 43.86 | -24.71 | 49.01 | 0.5320 | 814.0 | 705.2 | |
| 0.00 | 2.59 | 0.00 | 1.51 | 16.43 | 43.85 | -24.72 | 49.65 | 0.5284 | 895.0 | 643.1 | |
| 0.00 | 0.89 | 0.00 | 0.52 | 16.04 | 43.90 | -24.67 | 50.18 | 0.5243 | 750.0 | 555.9 | |
| 0.54 | 2.86 | 0.31 | 1.67 | 16.50 | 43.66 | -24.90 | 49.75 | 0.5311 | 849.3 | 698.7 | |
| 0.00 | 0.98 | 0.00 | 0.58 | 18.13 | 43.39 | -25.17 | 47.67 | 0.5489 | 798.0 | 740.7 | |
| 0.00 | 1.52 | 0.00 | 0.89 | 17.28 | 43.34 | -25.22 | 48.94 | 0.5418 | 661.0 | 560.2 | |
| 0.00 | 1.79 | 0.00 | 1.05 | 16.48 | 43.14 | -25.42 | 50.34 | 0.5368 | 612.0 | 497.6 | |
| 2.05 | 3.57 | 1.21 | 2.11 | 17.52 | 42.96 | -25.61 | 49.01 | 0.5482 | 691.2 | 627.2 | |
| 0.00 | 1.61 | 0.00 | 0.95 | 17.76 | 42.74 | -25.82 | 48.90 | 0.5526 | 590.0 | 386.8 | |
| 1.61 | 2.41 | 0.95 | 1.42 | 16.85 | 42.78 | -25.79 | 50.19 | 0.5442 | 738.9 | 659.1 | |
| 0.00 | 1.34 | 0.00 | 0.79 | 15.86 | 41.51 | -27.05 | 52.96 | 0.5503 | 643.0 | 503.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
