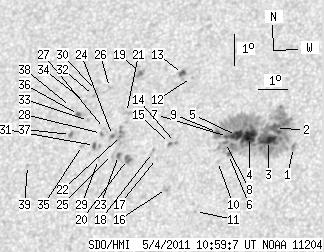

SDO HMI 2011-05-04 10:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 67.82 | 336.77 | 38.28 | 189.96 | 16.72 | 48.06 | -19.96 | 43.13 | 0.4793 | -164.4 | -218.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-04 10:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.95 | 0.00 | 1.63 | 16.25 | 50.42 | -17.59 | 40.42 | 0.4494 | -1000.0 | -753.4 | |
| 7.86 | 259.24 | 4.39 | 145.17 | 16.88 | 49.77 | -18.25 | 40.51 | 0.4632 | -905.3 | -435.5 | |
| 12.60 | -2.00 | 7.02 | -2.00 | 16.50 | 49.57 | -18.45 | 41.38 | 0.4609 | -1218.2 | 999999 | |
| 16.35 | -2.00 | 9.16 | -2.00 | 16.64 | 48.92 | -19.09 | 42.13 | 0.4691 | -1035.9 | 999999 | |
| 8.13 | -2.00 | 4.57 | -2.00 | 16.68 | 48.48 | -19.53 | 42.70 | 0.4742 | -939.2 | 999999 | |
| 1.25 | -2.00 | 0.70 | -2.00 | 16.08 | 48.28 | -19.74 | 43.92 | 0.4698 | -638.7 | 999999 | |
| 1.97 | -2.00 | 1.11 | -2.00 | 16.66 | 48.18 | -19.83 | 43.17 | 0.4770 | -733.0 | 999999 | |
| 1.16 | -2.00 | 0.65 | -2.00 | 16.47 | 48.14 | -19.88 | 43.52 | 0.4754 | -639.9 | 999999 | |
| 1.43 | -2.00 | 0.81 | -2.00 | 16.80 | 47.83 | -20.18 | 43.45 | 0.4822 | -539.2 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.60 | 15.86 | 47.93 | -20.08 | 44.74 | 0.4712 | -563.0 | -370.7 | |
| 0.00 | 1.07 | 0.00 | 0.60 | 14.28 | 47.36 | -20.66 | 48.08 | 0.4613 | 821.0 | 654.3 | |
| 0.00 | 0.89 | 0.00 | 0.51 | 18.61 | 46.73 | -21.29 | 42.33 | 0.5129 | -720.0 | -585.8 | |
| 3.04 | 4.91 | 1.76 | 2.84 | 18.75 | 46.40 | -21.61 | 42.56 | 0.5177 | -783.1 | -657.7 | |
| 0.00 | 1.34 | 0.00 | 0.76 | 16.51 | 46.45 | -21.57 | 45.75 | 0.4941 | 908.0 | 692.0 | |
| 1.25 | 1.79 | 0.71 | 1.02 | 16.48 | 46.25 | -21.77 | 46.05 | 0.4960 | 562.6 | 468.5 | |
| 0.00 | 3.84 | 0.00 | 2.17 | 15.04 | 46.31 | -21.71 | 48.23 | 0.4809 | 742.0 | 665.1 | |
| 0.00 | 1.07 | 0.00 | 0.61 | 16.01 | 45.86 | -22.16 | 47.26 | 0.4955 | 765.0 | 615.8 | |
| 0.00 | 2.50 | 0.00 | 1.43 | 16.21 | 45.70 | -22.32 | 47.16 | 0.4992 | 720.0 | 607.9 | |
| 1.79 | 5.81 | 1.04 | 3.40 | 18.79 | 44.95 | -23.07 | 44.33 | 0.5330 | 783.8 | 708.9 | |
| 4.73 | 5.27 | 2.72 | 3.02 | 16.00 | 44.87 | -23.14 | 48.49 | 0.5066 | 930.5 | 733.7 | |
| 0.00 | 3.48 | 0.00 | 2.02 | 17.53 | 44.64 | -23.38 | 46.49 | 0.5238 | 695.0 | 578.1 | |
| 0.00 | 9.83 | 0.00 | 5.68 | 16.78 | 44.57 | -23.45 | 47.67 | 0.5174 | 911.0 | 756.3 | |
| 0.80 | 2.59 | 0.46 | 1.49 | 16.14 | 44.55 | -23.47 | 48.66 | 0.5115 | 999.1 | 849.4 | |
| 0.98 | 3.22 | 0.57 | 1.86 | 16.79 | 44.26 | -23.76 | 48.02 | 0.5210 | 771.4 | 736.3 | |
| 0.00 | 1.34 | 0.00 | 0.77 | 16.18 | 44.34 | -23.68 | 48.85 | 0.5143 | 691.0 | 632.2 | |
| 0.00 | 2.32 | 0.00 | 1.36 | 18.36 | 43.93 | -24.09 | 46.12 | 0.5394 | 744.0 | 473.3 | |
| 0.00 | 0.98 | 0.00 | 0.57 | 17.03 | 43.95 | -24.07 | 48.03 | 0.5266 | 534.0 | 474.0 | |
| 0.00 | 1.43 | 0.00 | 0.83 | 16.87 | 43.86 | -24.15 | 48.36 | 0.5260 | 725.0 | 659.1 | |
| 0.00 | 0.63 | 0.00 | 0.36 | 16.03 | 43.87 | -24.14 | 49.61 | 0.5182 | 718.0 | 565.1 | |
| 0.00 | 1.61 | 0.00 | 0.95 | 18.27 | 43.49 | -24.53 | 46.75 | 0.5433 | 558.0 | 477.6 | |
| 1.97 | 4.38 | 1.14 | 2.54 | 16.49 | 43.67 | -24.34 | 49.15 | 0.5246 | 722.3 | 708.1 | |
| 0.00 | 1.25 | 0.00 | 0.74 | 18.11 | 43.41 | -24.61 | 47.07 | 0.5427 | 855.0 | 645.4 | |
| 0.00 | 1.34 | 0.00 | 0.79 | 17.30 | 43.35 | -24.67 | 48.30 | 0.5357 | 723.0 | 609.6 | |
| 0.00 | 1.07 | 0.00 | 0.63 | 17.93 | 43.12 | -24.90 | 47.65 | 0.5440 | 750.0 | 567.3 | |
| 0.00 | 2.14 | 0.00 | 1.25 | 16.50 | 43.26 | -24.76 | 49.60 | 0.5294 | 550.0 | 445.4 | |
| 1.97 | 3.66 | 1.16 | 2.15 | 17.51 | 42.97 | -25.04 | 48.42 | 0.5418 | 754.3 | 659.7 | |
| 0.54 | 2.41 | 0.31 | 1.42 | 16.87 | 42.79 | -25.23 | 49.56 | 0.5381 | 827.8 | 664.8 | |
| 0.00 | 0.36 | 0.00 | 0.21 | 17.78 | 42.65 | -25.37 | 48.38 | 0.5478 | 289.0 | 439.0 | |
| 0.00 | 0.98 | 0.00 | 0.58 | 15.91 | 41.42 | -26.60 | 52.43 | 0.5454 | 714.0 | 512.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
