SDO HMI 2011-05-04 10:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 9.11 | 18.14 | 5.72 | 11.30 | 13.43 | 34.67 | -33.35 | 61.85 | 0.6090 | -590.2 | -471.8 | |
|
previous
or next observation for the same group /

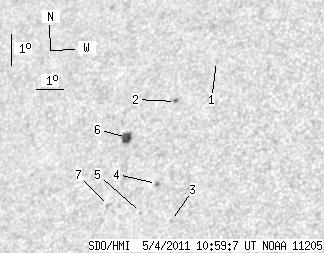

back to the solar disc SDO HMI 2011-05-04 10:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.07 | 0.00 | 0.66 | 16.19 | 37.06 | -30.96 | 55.98 | 0.5983 | -702.0 | -541.3 | |
| 0.80 | 1.61 | 0.50 | 1.00 | 14.96 | 35.76 | -32.26 | 58.80 | 0.6051 | 345.2 | 440.3 | |
| 0.00 | 1.43 | 0.00 | 0.87 | 11.19 | 36.16 | -31.86 | 64.27 | 0.5769 | -722.0 | -484.3 | |
| 0.00 | 1.52 | 0.00 | 0.93 | 12.37 | 35.46 | -32.56 | 62.90 | 0.5928 | -848.0 | -699.2 | |
| 0.00 | 0.45 | 0.00 | 0.27 | 11.48 | 34.99 | -33.03 | 64.59 | 0.5936 | -505.0 | -417.0 | |
| 8.31 | 9.56 | 5.22 | 6.01 | 13.88 | 34.11 | -33.91 | 61.56 | 0.6182 | -789.3 | -654.7 | |
| 0.00 | 2.50 | 0.00 | 1.56 | 11.75 | 33.76 | -34.25 | 64.96 | 0.6105 | -538.0 | -509.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
