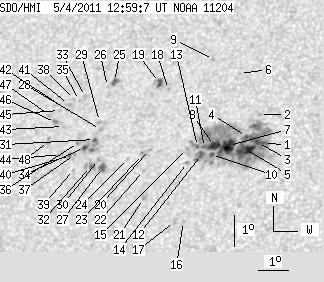

SDO HMI 2011-05-04 12:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 57.79 | 345.36 | 32.41 | 193.61 | 16.73 | 47.91 | -19.01 | 41.74 | 0.4695 | -69.3 | -214.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-04 12:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.16 | 254.90 | 0.64 | 141.74 | 16.69 | 50.15 | -16.77 | 38.46 | 0.4463 | -900.9 | -468.5 | |
| 0.00 | 2.05 | 0.00 | 1.14 | 17.63 | 49.92 | -16.99 | 37.47 | 0.4597 | -311.0 | -96.1 | |
| 1.79 | -1.00 | 0.99 | -1.00 | 16.73 | 49.94 | -16.97 | 38.73 | 0.4487 | -1080.2 | 999999 | |
| 1.52 | -1.00 | 0.84 | -1.00 | 16.93 | 49.56 | -17.36 | 39.06 | 0.4548 | -727.1 | 999999 | |
| 12.24 | -1.00 | 6.78 | -1.00 | 16.51 | 49.57 | -17.35 | 39.66 | 0.4498 | -1223.2 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.61 | 18.99 | 49.12 | -17.80 | 36.90 | 0.4834 | -741.0 | -530.3 | |
| 10.72 | -1.00 | 5.96 | -1.00 | 16.65 | 48.99 | -17.93 | 40.36 | 0.4573 | -1078.6 | 999999 | |
| 6.70 | -1.00 | 3.74 | -1.00 | 16.66 | 48.53 | -18.39 | 41.06 | 0.4621 | -972.7 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.71 | 19.47 | 48.18 | -18.74 | 37.66 | 0.4977 | -727.0 | -583.6 | |
| 2.23 | -1.00 | 1.24 | -1.00 | 16.37 | 48.45 | -18.46 | 41.60 | 0.4596 | -864.4 | 999999 | |
| 1.43 | -1.00 | 0.80 | -1.00 | 16.60 | 48.20 | -18.72 | 41.64 | 0.4648 | -747.1 | 999999 | |
| 3.39 | -1.00 | 1.90 | -1.00 | 16.38 | 48.12 | -18.80 | 42.09 | 0.4631 | -747.6 | 999999 | |
| 1.25 | -1.00 | 0.70 | -1.00 | 16.64 | 47.96 | -18.96 | 41.94 | 0.4677 | -568.4 | 999999 | |
| 0.00 | 1.61 | 0.00 | 0.90 | 16.13 | 47.68 | -19.24 | 43.12 | 0.4650 | -674.0 | -489.3 | |
| 0.00 | 1.34 | 0.00 | 0.75 | 16.58 | 47.63 | -19.29 | 42.50 | 0.4704 | -467.0 | -281.7 | |
| 0.00 | 0.71 | 0.00 | 0.39 | 14.25 | 47.73 | -19.19 | 46.08 | 0.4442 | 818.0 | 619.8 | |
| 0.00 | 2.41 | 0.00 | 1.33 | 14.25 | 47.43 | -19.49 | 46.50 | 0.4477 | 729.0 | 509.4 | |
| 0.00 | 1.16 | 0.00 | 0.66 | 18.52 | 46.77 | -20.15 | 40.93 | 0.5005 | -703.0 | -605.5 | |
| 3.57 | 6.25 | 2.05 | 3.59 | 18.76 | 46.44 | -20.48 | 41.07 | 0.5064 | -752.8 | -540.1 | |
| 0.00 | 1.79 | 0.00 | 1.01 | 16.58 | 46.36 | -20.56 | 44.30 | 0.4839 | 632.0 | 476.5 | |
| 0.00 | 0.71 | 0.00 | 0.40 | 15.01 | 46.32 | -20.59 | 46.80 | 0.4680 | 856.0 | 743.9 | |
| 0.00 | 1.07 | 0.00 | 0.60 | 15.91 | 46.23 | -20.69 | 45.51 | 0.4783 | 752.0 | 600.3 | |
| 0.00 | 2.59 | 0.00 | 1.46 | 16.43 | 46.14 | -20.78 | 44.83 | 0.4846 | 520.0 | 393.3 | |
| 0.00 | 0.45 | 0.00 | 0.25 | 16.31 | 45.68 | -21.24 | 45.63 | 0.4884 | 670.0 | 566.2 | |
| 2.95 | 4.73 | 1.71 | 2.75 | 18.83 | 44.88 | -22.04 | 43.00 | 0.5227 | 787.8 | 704.8 | |
| 0.00 | 0.89 | 0.00 | 0.52 | 18.67 | 44.66 | -22.25 | 43.49 | 0.5234 | 788.0 | 591.5 | |
| 3.75 | 5.09 | 2.14 | 2.90 | 16.04 | 44.83 | -22.09 | 47.14 | 0.4951 | 981.8 | 855.5 | |
| 0.00 | 1.70 | 0.00 | 0.98 | 17.27 | 44.61 | -22.31 | 45.56 | 0.5097 | 908.0 | 731.3 | |
| 0.00 | 1.25 | 0.00 | 0.72 | 17.53 | 44.54 | -22.38 | 45.26 | 0.5131 | 745.0 | 592.9 | |
| 0.00 | 2.05 | 0.00 | 1.17 | 16.30 | 44.66 | -22.26 | 46.94 | 0.4995 | 888.0 | 704.9 | |
| 1.43 | 16.43 | 0.82 | 9.43 | 16.95 | 44.45 | -22.47 | 46.24 | 0.5083 | 858.3 | 786.5 | |
| 1.07 | 5.81 | 0.61 | 3.32 | 16.09 | 44.42 | -22.50 | 47.59 | 0.5001 | 903.0 | 762.0 | |
| 0.00 | 3.22 | 0.00 | 1.87 | 18.36 | 43.95 | -22.97 | 44.81 | 0.5277 | 608.0 | 463.4 | |
| 1.88 | -31.00 | 1.08 | -31.00 | 16.71 | 44.13 | -22.78 | 46.99 | 0.5093 | 862.1 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.52 | 18.24 | 43.76 | -23.16 | 45.21 | 0.5284 | 638.0 | 548.8 | |
| 0.00 | 1.79 | 0.00 | 1.03 | 16.87 | 43.91 | -23.01 | 47.02 | 0.5134 | 677.0 | 583.5 | |
| 0.00 | 1.25 | 0.00 | 0.72 | 16.49 | 43.82 | -23.10 | 47.70 | 0.5106 | 878.0 | 704.2 | |
| 0.00 | 1.52 | 0.00 | 0.89 | 18.28 | 43.58 | -23.34 | 45.37 | 0.5307 | 555.0 | 476.6 | |
| 0.00 | 0.98 | 0.00 | 0.56 | 16.01 | 43.85 | -23.07 | 48.41 | 0.5057 | 578.0 | 418.5 | |
| 0.71 | 2.41 | 0.41 | 1.39 | 16.46 | 43.69 | -23.23 | 47.90 | 0.5119 | 728.5 | 736.8 | |
| 0.00 | 2.77 | 0.00 | 1.62 | 18.12 | 43.39 | -23.53 | 45.82 | 0.5311 | 721.0 | 585.3 | |
| 0.00 | 0.63 | 0.00 | 0.36 | 17.92 | 43.39 | -23.53 | 46.11 | 0.5293 | 735.0 | 614.4 | |
| 0.00 | 0.80 | 0.00 | 0.47 | 17.41 | 43.32 | -23.60 | 46.93 | 0.5250 | 775.0 | 644.7 | |
| 0.00 | 3.57 | 0.00 | 2.06 | 16.50 | 43.34 | -23.58 | 48.26 | 0.5161 | 700.0 | 477.9 | |
| 0.00 | 0.98 | 0.00 | 0.57 | 17.93 | 43.11 | -23.81 | 46.42 | 0.5323 | 788.0 | 545.9 | |
| 0.00 | 2.86 | 0.00 | 1.67 | 17.54 | 43.02 | -23.90 | 47.08 | 0.5295 | 857.0 | 705.9 | |
| 0.00 | 1.43 | 0.00 | 0.84 | 17.78 | 42.78 | -24.14 | 47.02 | 0.5344 | 461.0 | 460.1 | |
| 0.00 | 2.95 | 0.00 | 1.71 | 16.93 | 42.86 | -24.05 | 48.16 | 0.5255 | 869.0 | 602.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
