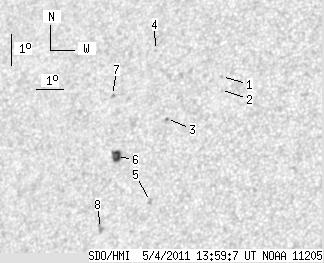

SDO HMI 2011-05-04 13:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.59 | 18.94 | 4.69 | 11.64 | 13.77 | 34.50 | -31.87 | 60.29 | 0.5930 | -613.4 | -489.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-04 13:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.63 | 0.00 | 0.38 | 16.31 | 37.50 | -28.87 | 54.01 | 0.5748 | -655.0 | -527.9 | |
| 0.00 | 0.36 | 0.00 | 0.22 | 15.89 | 37.53 | -28.83 | 54.60 | 0.5712 | -386.0 | -492.8 | |
| 0.00 | 1.16 | 0.00 | 0.71 | 15.02 | 35.72 | -30.65 | 57.45 | 0.5863 | 655.0 | 494.3 | |
| 0.00 | 0.80 | 0.00 | 0.50 | 17.24 | 34.93 | -31.44 | 54.89 | 0.6112 | -642.0 | -501.9 | |
| 0.00 | 2.50 | 0.00 | 1.51 | 12.40 | 35.52 | -30.85 | 61.62 | 0.5713 | -742.0 | -617.0 | |
| 7.59 | 9.20 | 4.69 | 5.68 | 13.88 | 34.07 | -32.30 | 60.44 | 0.5986 | -838.0 | -625.8 | |
| 0.00 | 1.16 | 0.00 | 0.73 | 15.84 | 33.58 | -32.78 | 57.92 | 0.6170 | -675.0 | -601.4 | |
| 0.00 | 3.13 | 0.00 | 1.91 | 11.62 | 33.81 | -32.56 | 64.08 | 0.5884 | -796.0 | -629.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
