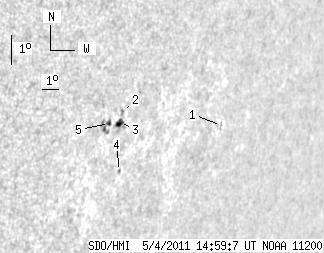

SDO HMI 2011-05-04 14:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.45 | 23.65 | 4.92 | 21.68 | -16.93 | 122.74 | 56.92 | 252.29 | 0.8431 | -200.4 | -142.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-04 14:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.96 | 0.00 | 2.13 | -16.64 | 128.60 | 62.78 | 253.25 | 0.8916 | 313.0 | 272.0 | |
| 0.00 | 2.59 | 0.00 | 2.35 | -16.59 | 122.34 | 56.52 | 252.67 | 0.8395 | -290.0 | -271.2 | |
| 4.02 | 8.30 | 3.64 | 7.54 | -16.90 | 122.31 | 56.49 | 252.29 | 0.8396 | -403.1 | 231.5 | |
| 0.00 | 0.98 | 0.00 | 0.91 | -18.41 | 123.05 | 57.23 | 250.62 | 0.8478 | 568.0 | 480.9 | |
| 1.43 | 9.82 | 1.28 | 8.75 | -16.97 | 121.76 | 55.95 | 252.15 | 0.8347 | -555.3 | -492.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
