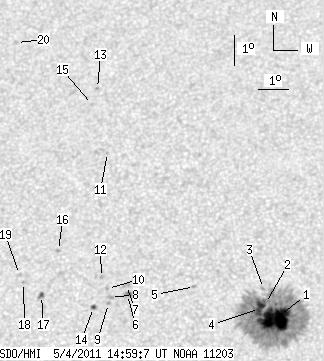

SDO HMI 2011-05-04 14:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.39 | 345.32 | 31.76 | 184.94 | 17.93 | 61.05 | -4.76 | 11.86 | 0.3812 | -676.6 | -327.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-04 14:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.79 | 312.81 | 24.98 | 167.07 | 17.67 | 61.69 | -4.13 | 10.60 | 0.3744 | -1380.2 | -414.6 | |
| 0.54 | -1.00 | 0.29 | -1.00 | 18.16 | 61.36 | -4.46 | 11.16 | 0.3832 | -630.0 | 999999 | |
| 0.00 | 1.79 | 0.00 | 0.96 | 18.65 | 61.28 | -4.53 | 11.08 | 0.3912 | -658.0 | -446.9 | |
| 8.75 | -1.00 | 4.69 | -1.00 | 17.99 | 61.17 | -4.64 | 11.70 | 0.3812 | -963.7 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.01 | 18.73 | 59.07 | -6.75 | 16.19 | 0.4009 | -604.0 | -406.2 | |
| 0.00 | 3.57 | 0.00 | 1.94 | 18.49 | 56.92 | -8.89 | 21.14 | 0.4082 | 941.0 | 832.8 | |
| 0.00 | 3.57 | 0.00 | 1.94 | 18.78 | 56.88 | -8.94 | 20.97 | 0.4128 | 583.0 | 555.5 | |
| 0.00 | 2.41 | 0.00 | 1.31 | 18.39 | 56.38 | -9.44 | 22.40 | 0.4101 | 820.0 | 665.8 | |
| 0.00 | 1.61 | 0.00 | 0.87 | 18.20 | 56.33 | -9.49 | 22.71 | 0.4075 | 882.0 | 699.0 | |
| 0.00 | 1.52 | 0.00 | 0.83 | 18.69 | 56.27 | -9.55 | 22.35 | 0.4151 | 818.0 | 625.5 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 23.22 | 55.97 | -9.85 | 19.09 | 0.4825 | 759.0 | 641.0 | |
| 0.00 | 1.43 | 0.00 | 0.78 | 19.05 | 56.05 | -9.77 | 22.45 | 0.4217 | 840.0 | 675.4 | |
| 0.00 | 1.25 | 0.00 | 0.72 | 25.43 | 55.45 | -10.36 | 18.42 | 0.5163 | 754.0 | 594.1 | |
| 1.79 | 2.59 | 0.97 | 1.40 | 18.07 | 55.85 | -9.97 | 23.85 | 0.4087 | -439.5 | -364.8 | |
| 0.00 | 0.45 | 0.00 | 0.26 | 24.88 | 55.33 | -10.49 | 19.00 | 0.5091 | 694.0 | 610.0 | |
| 0.00 | 1.79 | 0.00 | 0.99 | 19.96 | 54.59 | -11.23 | 24.46 | 0.4439 | -852.0 | -506.6 | |
| 1.52 | 2.68 | 0.83 | 1.47 | 18.49 | 54.14 | -11.68 | 26.89 | 0.4263 | 948.6 | 831.4 | |
| 0.00 | 0.71 | 0.00 | 0.39 | 18.92 | 53.52 | -12.30 | 27.60 | 0.4368 | 754.0 | 617.4 | |
| 0.00 | 2.41 | 0.00 | 1.33 | 19.19 | 53.37 | -12.45 | 27.59 | 0.4415 | 721.0 | 466.4 | |
| 0.00 | 1.96 | 0.00 | 1.17 | 27.08 | 52.49 | -13.33 | 21.84 | 0.5539 | 683.0 | 532.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
