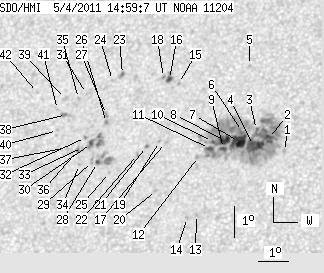

SDO HMI 2011-05-04 14:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 60.73 | 351.80 | 33.70 | 195.66 | 16.64 | 48.12 | -17.70 | 39.87 | 0.4553 | -247.1 | -185.6 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-04 14:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.05 | 0.00 | 1.12 | 16.25 | 50.56 | -15.26 | 36.52 | 0.4263 | -841.0 | -665.0 | |
| 5.27 | 270.75 | 2.90 | 149.59 | 16.67 | 50.00 | -15.82 | 36.88 | 0.4369 | -1111.5 | -426.9 | |
| 1.16 | -2.00 | 0.64 | -2.00 | 16.97 | 49.58 | -16.24 | 37.16 | 0.4445 | -596.6 | 999999 | |
| 15.81 | -2.00 | 8.70 | -2.00 | 16.46 | 49.53 | -16.29 | 38.00 | 0.4388 | -1194.3 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.80 | 19.07 | 49.15 | -16.67 | 35.05 | 0.4741 | -758.0 | -585.4 | |
| 1.07 | -2.00 | 0.59 | -2.00 | 16.92 | 49.12 | -16.69 | 38.00 | 0.4482 | -532.3 | 999999 | |
| 15.45 | -2.00 | 8.54 | -2.00 | 16.60 | 49.02 | -16.80 | 38.64 | 0.4454 | -1054.0 | 999999 | |
| 7.05 | -2.00 | 3.91 | -2.00 | 16.64 | 48.56 | -17.26 | 39.33 | 0.4504 | -948.1 | 999999 | |
| 2.59 | -2.00 | 1.43 | -2.00 | 16.38 | 48.55 | -17.27 | 39.73 | 0.4475 | -943.3 | 999999 | |
| 0.89 | -2.00 | 0.50 | -2.00 | 16.62 | 48.16 | -17.66 | 39.99 | 0.4541 | -696.7 | 999999 | |
| 2.68 | -2.00 | 1.49 | -2.00 | 16.39 | 48.08 | -17.73 | 40.45 | 0.4523 | -678.6 | 999999 | |
| 0.00 | 3.30 | 0.00 | 1.83 | 16.14 | 47.74 | -18.07 | 41.36 | 0.4529 | -425.0 | -253.6 | |
| 0.00 | 1.25 | 0.00 | 0.69 | 14.29 | 47.84 | -17.98 | 44.16 | 0.4310 | 773.0 | 598.6 | |
| 0.00 | 0.98 | 0.00 | 0.54 | 14.20 | 47.55 | -18.26 | 44.76 | 0.4333 | 818.0 | 681.8 | |
| 0.00 | 0.98 | 0.00 | 0.56 | 18.53 | 46.82 | -18.99 | 39.30 | 0.4892 | -812.0 | -640.6 | |
| 2.86 | 4.64 | 1.63 | 2.64 | 18.67 | 46.50 | -19.31 | 39.57 | 0.4939 | -816.3 | -583.5 | |
| 0.00 | 0.98 | 0.00 | 0.55 | 16.62 | 46.60 | -19.22 | 42.36 | 0.4701 | 797.0 | 641.7 | |
| 0.00 | 1.61 | 0.00 | 0.92 | 18.74 | 46.29 | -19.53 | 39.77 | 0.4967 | -626.0 | -522.1 | |
| 0.00 | 1.16 | 0.00 | 0.65 | 16.65 | 46.39 | -19.42 | 42.60 | 0.4726 | 588.0 | 434.6 | |
| 0.00 | 1.07 | 0.00 | 0.60 | 15.08 | 46.45 | -19.37 | 44.96 | 0.4550 | 782.0 | 564.1 | |
| 0.00 | 1.52 | 0.00 | 0.85 | 16.50 | 45.97 | -19.84 | 43.43 | 0.4754 | 781.0 | 641.3 | |
| 0.00 | 1.52 | 0.00 | 0.85 | 16.25 | 45.70 | -20.12 | 44.20 | 0.4756 | 716.0 | 617.4 | |
| 0.98 | 2.32 | 0.57 | 1.34 | 18.87 | 44.88 | -20.94 | 41.53 | 0.5121 | 816.0 | 774.1 | |
| 0.00 | 0.80 | 0.00 | 0.46 | 18.68 | 44.56 | -21.26 | 42.21 | 0.5133 | 673.0 | 577.9 | |
| 0.00 | 0.71 | 0.00 | 0.40 | 15.70 | 44.82 | -21.00 | 46.26 | 0.4794 | 764.0 | 650.0 | |
| 0.00 | 1.61 | 0.00 | 0.92 | 17.31 | 44.53 | -21.29 | 44.19 | 0.4992 | 990.0 | 840.6 | |
| 0.00 | 2.59 | 0.00 | 1.48 | 17.57 | 44.50 | -21.32 | 43.85 | 0.5023 | 706.0 | 656.5 | |
| 1.70 | 15.54 | 0.96 | 8.80 | 16.03 | 44.38 | -21.44 | 46.33 | 0.4877 | 927.1 | 808.5 | |
| 0.00 | 2.23 | 0.00 | 1.27 | 16.06 | 44.20 | -21.61 | 46.50 | 0.4900 | 606.0 | 572.9 | |
| 1.70 | 13.66 | 0.97 | 7.78 | 16.65 | 44.10 | -21.72 | 45.74 | 0.4970 | 963.9 | 876.9 | |
| 0.00 | 0.89 | 0.00 | 0.52 | 18.28 | 43.72 | -22.09 | 43.85 | 0.5176 | 753.0 | 520.3 | |
| 0.00 | 1.43 | 0.00 | 0.82 | 16.85 | 43.87 | -21.94 | 45.74 | 0.5015 | 757.0 | 618.1 | |
| 0.00 | 1.07 | 0.00 | 0.61 | 16.53 | 43.81 | -22.01 | 46.30 | 0.4989 | 744.0 | 625.1 | |
| 0.00 | 0.98 | 0.00 | 0.56 | 15.98 | 43.77 | -22.04 | 47.18 | 0.4939 | 682.0 | 523.0 | |
| 0.00 | 1.25 | 0.00 | 0.72 | 18.12 | 43.47 | -22.35 | 44.39 | 0.5187 | 854.0 | 670.3 | |
| 1.52 | 2.59 | 0.87 | 1.48 | 16.43 | 43.65 | -22.17 | 46.64 | 0.4997 | 703.5 | 647.2 | |
| 0.00 | 0.98 | 0.00 | 0.56 | 16.54 | 43.30 | -22.52 | 46.92 | 0.5047 | 587.0 | 495.1 | |
| 0.00 | 3.93 | 0.00 | 2.27 | 17.61 | 43.12 | -22.69 | 45.55 | 0.5172 | 901.0 | 729.8 | |
| 0.00 | 2.77 | 0.00 | 1.61 | 18.13 | 43.02 | -22.80 | 44.93 | 0.5235 | 782.0 | 526.1 | |
| 0.00 | 1.16 | 0.00 | 0.67 | 17.10 | 42.88 | -22.93 | 46.59 | 0.5147 | 539.0 | 472.2 | |
| 0.00 | 0.89 | 0.00 | 0.52 | 17.78 | 42.79 | -23.03 | 45.71 | 0.5224 | 689.0 | 531.7 | |
| 0.00 | 1.16 | 0.00 | 0.68 | 18.36 | 42.02 | -23.80 | 45.81 | 0.5363 | 541.0 | 330.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
