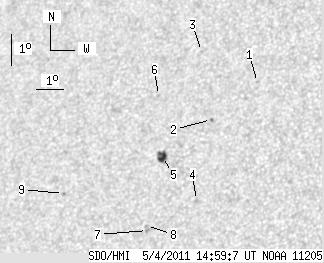

SDO HMI 2011-05-04 14:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.72 | 17.94 | 3.51 | 11.01 | 13.77 | 34.09 | -31.73 | 60.15 | 0.5914 | -635.4 | -504.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-04 14:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.43 | 16.15 | 37.16 | -28.66 | 54.06 | 0.5711 | -535.0 | -534.0 | |
| 0.00 | 1.07 | 0.00 | 0.65 | 15.01 | 35.68 | -30.14 | 57.04 | 0.5801 | 594.0 | 494.7 | |
| 0.00 | 0.80 | 0.00 | 0.50 | 17.22 | 34.94 | -30.88 | 54.45 | 0.6048 | -644.0 | -536.7 | |
| 0.00 | 1.34 | 0.00 | 0.80 | 12.45 | 35.51 | -30.31 | 61.14 | 0.5649 | -802.0 | -644.1 | |
| 5.72 | 8.75 | 3.51 | 5.37 | 13.89 | 34.07 | -31.75 | 60.00 | 0.5920 | -877.0 | -638.7 | |
| 0.00 | 1.07 | 0.00 | 0.67 | 15.85 | 33.59 | -32.22 | 57.48 | 0.6106 | -696.0 | -553.5 | |
| 0.00 | 1.70 | 0.00 | 1.03 | 11.57 | 33.85 | -31.97 | 63.75 | 0.5805 | -789.0 | -648.7 | |
| 0.00 | 1.16 | 0.00 | 0.71 | 11.73 | 33.79 | -32.03 | 63.54 | 0.5822 | -619.0 | -540.2 | |
| 0.00 | 1.34 | 0.00 | 0.85 | 12.86 | 30.54 | -35.28 | 63.94 | 0.6291 | -744.0 | -565.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
