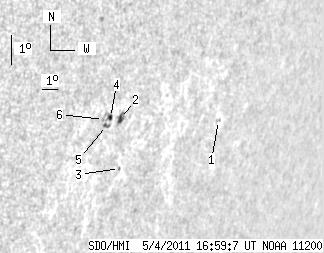

SDO HMI 2011-05-04 16:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 4.73 | 18.84 | 4.39 | 17.84 | -17.05 | 122.84 | 58.13 | 252.30 | 0.8536 | -260.9 | -172.1 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-04 16:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.96 | 0.00 | 2.21 | -16.65 | 128.56 | 63.84 | 253.32 | 0.8995 | 556.0 | 426.0 | |
| 2.59 | 6.61 | 2.42 | 6.17 | -16.94 | 122.33 | 57.62 | 252.39 | 0.8496 | -413.2 | -206.5 | |
| 0.00 | 1.25 | 0.00 | 1.20 | -18.48 | 123.06 | 58.34 | 250.69 | 0.8575 | 501.0 | 419.8 | |
| 2.14 | 5.00 | 1.97 | 4.58 | -16.94 | 121.74 | 57.03 | 252.31 | 0.8444 | -515.5 | -501.9 | |
| 0.00 | 2.86 | 0.00 | 2.62 | -17.20 | 121.63 | 56.92 | 252.00 | 0.8437 | -623.0 | -412.6 | |
| 0.00 | 1.16 | 0.00 | 1.06 | -17.03 | 121.37 | 56.66 | 252.17 | 0.8412 | -607.0 | -558.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
