SDO HMI 2011-05-04 16:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 59.38 | 341.89 | 31.73 | 182.94 | 17.97 | 61.00 | -3.71 | 9.23 | 0.3788 | -547.5 | -341.3 | |
|
previous
or next observation for the same group /

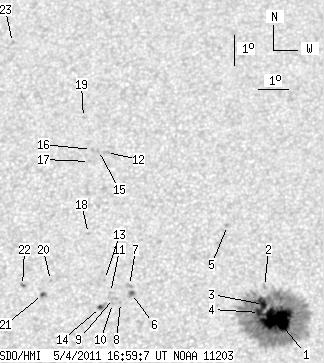

back to the solar disc SDO HMI 2011-05-04 16:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 45.00 | 306.44 | 24.00 | 163.47 | 17.66 | 61.67 | -3.05 | 7.87 | 0.3714 | -1421.8 | -439.0 | |
| 0.00 | 1.88 | 0.00 | 1.01 | 18.73 | 61.23 | -3.48 | 8.52 | 0.3897 | -669.0 | -507.1 | |
| 4.73 | -1.00 | 2.53 | -1.00 | 18.15 | 61.21 | -3.50 | 8.81 | 0.3803 | -931.2 | 999999 | |
| 3.66 | -1.00 | 1.96 | -1.00 | 17.89 | 61.09 | -3.62 | 9.23 | 0.3765 | -1024.4 | 999999 | |
| 0.00 | 1.88 | 0.00 | 1.03 | 20.75 | 59.99 | -4.72 | 10.49 | 0.4248 | -694.0 | -576.4 | |
| 2.41 | 3.48 | 1.30 | 1.88 | 18.53 | 56.98 | -7.74 | 18.56 | 0.4026 | 944.3 | 831.2 | |
| 0.00 | 2.59 | 0.00 | 1.40 | 18.80 | 56.90 | -7.81 | 18.52 | 0.4070 | 781.0 | 620.0 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 18.24 | 56.64 | -8.08 | 19.57 | 0.4000 | 754.0 | 647.1 | |
| 0.00 | 2.59 | 0.00 | 1.40 | 18.38 | 56.40 | -8.31 | 19.97 | 0.4032 | 807.0 | 658.4 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 18.21 | 56.38 | -8.33 | 20.17 | 0.4009 | 873.0 | 601.4 | |
| 0.00 | 1.25 | 0.00 | 0.68 | 18.57 | 56.30 | -8.41 | 20.03 | 0.4068 | 820.0 | 586.9 | |
| 0.00 | 2.59 | 0.00 | 1.46 | 23.24 | 55.90 | -8.82 | 17.22 | 0.4777 | 697.0 | 610.4 | |
| 0.00 | 0.89 | 0.00 | 0.49 | 19.00 | 56.08 | -8.63 | 20.11 | 0.4143 | 907.0 | 704.6 | |
| 1.79 | 3.66 | 0.97 | 1.98 | 18.09 | 56.00 | -8.71 | 21.13 | 0.4012 | -520.4 | 334.4 | |
| 0.00 | 1.16 | 0.00 | 0.65 | 23.31 | 55.62 | -9.09 | 17.66 | 0.4800 | 646.0 | 634.5 | |
| 0.00 | 0.98 | 0.00 | 0.55 | 23.35 | 55.39 | -9.32 | 18.06 | 0.4817 | 682.0 | 572.8 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 22.94 | 55.35 | -9.36 | 18.42 | 0.4760 | 713.0 | 650.0 | |
| 0.00 | 1.16 | 0.00 | 0.64 | 20.53 | 55.48 | -9.24 | 20.06 | 0.4401 | 686.0 | 559.7 | |
| 0.00 | 1.07 | 0.00 | 0.61 | 24.45 | 55.04 | -9.67 | 17.92 | 0.4991 | 657.0 | 461.9 | |
| 0.00 | 1.07 | 0.00 | 0.59 | 18.99 | 54.33 | -10.38 | 23.76 | 0.4245 | 893.0 | 554.4 | |
| 1.79 | 2.77 | 0.97 | 1.51 | 18.53 | 54.10 | -10.61 | 24.70 | 0.4195 | 941.5 | 874.3 | |
| 0.00 | 1.88 | 0.00 | 1.03 | 18.84 | 53.43 | -11.28 | 25.72 | 0.4283 | 869.0 | 781.1 | |
| 0.00 | 1.70 | 0.00 | 1.00 | 27.09 | 52.36 | -12.35 | 20.38 | 0.5490 | 747.0 | 554.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
