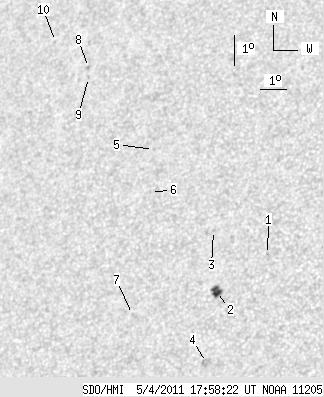

SDO HMI 2011-05-04 17:58:22 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 7.14 | 21.14 | 4.31 | 13.05 | 14.83 | 32.61 | -31.56 | 58.61 | 0.5948 | -185.7 | -151.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-04 17:58:22 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.53 | 15.02 | 35.65 | -28.52 | 55.63 | 0.5608 | 693.0 | 569.3 | |
| 7.14 | 8.30 | 4.31 | 5.01 | 13.90 | 33.98 | -30.19 | 58.78 | 0.5729 | -886.2 | -664.4 | |
| 0.00 | 0.98 | 0.00 | 0.60 | 15.86 | 33.57 | -30.60 | 56.18 | 0.5916 | -747.0 | -639.0 | |
| 0.00 | 5.63 | 0.00 | 3.36 | 11.67 | 33.92 | -30.25 | 62.36 | 0.5590 | -689.0 | -530.7 | |
| 0.00 | 0.80 | 0.00 | 0.52 | 18.58 | 30.79 | -33.37 | 54.58 | 0.6421 | 594.0 | 468.3 | |
| 0.00 | 0.71 | 0.00 | 0.45 | 17.18 | 30.98 | -33.19 | 56.35 | 0.6305 | 416.0 | 383.0 | |
| 0.00 | 1.16 | 0.00 | 0.72 | 13.28 | 31.00 | -33.17 | 61.95 | 0.6056 | -647.0 | -515.8 | |
| 0.00 | 0.89 | 0.00 | 0.61 | 21.41 | 27.51 | -36.66 | 53.31 | 0.6955 | 607.0 | 539.8 | |
| 0.00 | 0.80 | 0.00 | 0.55 | 21.07 | 27.60 | -36.56 | 53.66 | 0.6924 | 679.0 | 647.2 | |
| 0.00 | 0.98 | 0.00 | 0.70 | 22.35 | 25.86 | -38.31 | 53.26 | 0.7178 | 442.0 | 389.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
