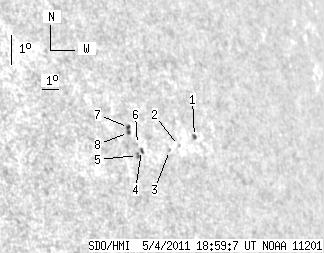

SDO HMI 2011-05-04 18:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.37 | 13.75 | 5.17 | 13.26 | 13.07 | 120.56 | 56.96 | 287.75 | 0.8590 | 183.5 | 136.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-04 18:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.61 | 2.14 | 1.67 | 2.23 | 13.39 | 123.17 | 59.56 | 287.47 | 0.8812 | -382.1 | -384.0 | |
| 0.00 | 1.52 | 0.00 | 1.53 | 13.04 | 122.06 | 58.45 | 287.34 | 0.8717 | -214.0 | -315.1 | |
| 0.00 | 1.07 | 0.00 | 1.06 | 12.85 | 121.45 | 57.85 | 287.27 | 0.8664 | -563.0 | -464.5 | |
| 0.54 | 1.88 | 0.50 | 1.77 | 12.75 | 119.81 | 56.21 | 287.56 | 0.8522 | 241.5 | 216.7 | |
| 0.00 | 2.14 | 0.00 | 2.00 | 12.58 | 119.53 | 55.93 | 287.44 | 0.8494 | 686.0 | 555.7 | |
| 0.00 | 0.71 | 0.00 | 0.67 | 12.93 | 119.65 | 56.04 | 287.81 | 0.8512 | 514.0 | 446.1 | |
| 1.61 | 4.29 | 1.50 | 4.00 | 13.45 | 119.33 | 55.72 | 288.49 | 0.8495 | 585.4 | 600.9 | |
| 1.61 | -7.00 | 1.50 | -7.00 | 13.29 | 119.27 | 55.67 | 288.32 | 0.8486 | 599.5 | 999999 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
