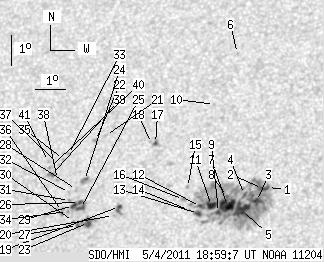

SDO HMI 2011-05-04 18:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 70.01 | 320.56 | 38.44 | 176.09 | 16.69 | 48.30 | -15.30 | 35.81 | 0.4328 | -157.2 | -258.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-04 18:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.25 | 250.91 | 0.68 | 136.97 | 17.11 | 50.40 | -13.20 | 31.53 | 0.4192 | 327.2 | -470.8 | |
| 3.04 | -1.00 | 1.66 | -1.00 | 17.08 | 50.24 | -13.36 | 31.88 | 0.4201 | -381.2 | 999999 | |
| 4.64 | -1.00 | 2.53 | -1.00 | 16.66 | 50.08 | -13.53 | 32.75 | 0.4160 | -1069.8 | 999999 | |
| 1.43 | -1.00 | 0.78 | -1.00 | 16.89 | 49.67 | -13.94 | 33.20 | 0.4226 | -757.9 | 999999 | |
| 15.36 | -1.00 | 8.36 | -1.00 | 16.38 | 49.61 | -13.99 | 34.02 | 0.4164 | -1179.0 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.61 | 21.54 | 49.03 | -14.58 | 28.77 | 0.4885 | 678.0 | 476.8 | |
| 13.75 | -1.00 | 7.51 | -1.00 | 16.55 | 49.14 | -14.46 | 34.66 | 0.4228 | -1110.9 | 999999 | |
| 0.54 | -1.00 | 0.29 | -1.00 | 16.84 | 49.12 | -14.49 | 34.29 | 0.4267 | -530.0 | 999999 | |
| 2.05 | -1.00 | 1.12 | -1.00 | 16.33 | 48.87 | -14.74 | 35.47 | 0.4225 | -1025.9 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.60 | 19.86 | 48.43 | -15.18 | 31.65 | 0.4713 | -640.0 | -503.2 | |
| 6.16 | -1.00 | 3.37 | -1.00 | 16.56 | 48.62 | -14.98 | 35.59 | 0.4276 | -1007.1 | 999999 | |
| 1.79 | -1.00 | 0.98 | -1.00 | 16.53 | 48.26 | -15.34 | 36.26 | 0.4306 | -862.7 | 999999 | |
| 3.13 | -1.00 | 1.71 | -1.00 | 16.31 | 48.22 | -15.39 | 36.67 | 0.4283 | -721.6 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.59 | 16.41 | 47.91 | -15.69 | 37.05 | 0.4324 | -383.0 | -309.7 | |
| 0.00 | 0.98 | 0.00 | 0.54 | 17.16 | 47.78 | -15.82 | 36.21 | 0.4428 | -485.0 | -416.5 | |
| 0.00 | 2.32 | 0.00 | 1.28 | 16.77 | 47.69 | -15.92 | 36.92 | 0.4390 | -577.0 | -461.9 | |
| 1.34 | 4.02 | 0.75 | 2.25 | 18.61 | 46.59 | -17.02 | 36.20 | 0.4716 | -871.5 | -504.4 | |
| 0.00 | 1.16 | 0.00 | 0.65 | 18.61 | 46.45 | -17.15 | 36.41 | 0.4729 | -421.0 | -501.1 | |
| 1.43 | 5.18 | 0.80 | 2.88 | 16.59 | 45.59 | -18.01 | 40.60 | 0.4573 | 836.2 | 896.1 | |
| 0.00 | 0.98 | 0.00 | 0.55 | 16.30 | 45.42 | -18.19 | 41.29 | 0.4558 | 839.0 | 618.1 | |
| 0.00 | 1.43 | 0.00 | 0.81 | 18.91 | 44.88 | -18.73 | 38.40 | 0.4910 | 644.0 | 446.3 | |
| 0.00 | 2.23 | 0.00 | 1.27 | 18.75 | 44.56 | -19.05 | 39.08 | 0.4923 | 855.0 | 655.2 | |
| 5.36 | 12.50 | 2.99 | 6.98 | 16.09 | 44.61 | -19.00 | 42.83 | 0.4619 | 1003.0 | 847.1 | |
| 0.00 | 4.38 | 0.00 | 2.47 | 17.46 | 44.33 | -19.27 | 41.21 | 0.4799 | 946.0 | 774.4 | |
| 3.21 | 11.88 | 1.80 | 6.67 | 16.55 | 44.30 | -19.31 | 42.60 | 0.4702 | 1056.7 | 859.5 | |
| 1.52 | -25.00 | 0.85 | -25.00 | 16.75 | 44.24 | -19.36 | 42.38 | 0.4729 | 864.9 | 999999 | |
| 1.07 | -23.00 | 0.60 | -23.00 | 16.01 | 44.25 | -19.35 | 43.49 | 0.4647 | 956.0 | 999999 | |
| 0.00 | 1.70 | 0.00 | 0.96 | 17.17 | 44.10 | -19.51 | 41.97 | 0.4791 | 669.0 | 533.1 | |
| 2.14 | -25.00 | 1.20 | -25.00 | 16.65 | 44.05 | -19.55 | 42.80 | 0.4739 | 954.7 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.50 | 16.14 | 44.11 | -19.50 | 43.50 | 0.4677 | 735.0 | 693.6 | |
| 0.00 | 1.16 | 0.00 | 0.65 | 16.82 | 43.90 | -19.71 | 42.77 | 0.4773 | 796.0 | 626.2 | |
| 0.00 | 1.70 | 0.00 | 0.96 | 17.08 | 43.87 | -19.73 | 42.42 | 0.4804 | 606.0 | 503.6 | |
| 0.00 | 1.34 | 0.00 | 0.76 | 18.32 | 43.69 | -19.91 | 40.90 | 0.4958 | 666.0 | 625.2 | |
| 0.00 | 1.34 | 0.00 | 0.75 | 16.46 | 43.87 | -19.74 | 43.34 | 0.4738 | 821.0 | 699.3 | |
| 0.00 | 1.07 | 0.00 | 0.61 | 18.16 | 43.54 | -20.06 | 41.33 | 0.4955 | 834.0 | 557.5 | |
| 0.00 | 3.04 | 0.00 | 1.71 | 16.47 | 43.70 | -19.90 | 43.57 | 0.4756 | 760.0 | 656.4 | |
| 0.00 | 1.07 | 0.00 | 0.61 | 18.00 | 43.39 | -20.21 | 41.76 | 0.4953 | 759.0 | 625.5 | |
| 0.00 | 1.25 | 0.00 | 0.71 | 17.51 | 43.42 | -20.19 | 42.43 | 0.4898 | 941.0 | 753.5 | |
| 0.80 | 3.13 | 0.46 | 1.78 | 17.68 | 43.20 | -20.41 | 42.49 | 0.4939 | 919.9 | 722.8 | |
| 0.00 | 0.89 | 0.00 | 0.51 | 17.91 | 43.10 | -20.51 | 42.30 | 0.4973 | 865.0 | 719.7 | |
| 0.00 | 0.80 | 0.00 | 0.46 | 18.10 | 43.04 | -20.56 | 42.09 | 0.5000 | 774.0 | 558.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
