SDO HMI 2011-05-04 20:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.26 | 14.03 | 6.20 | 13.65 | 13.31 | 119.79 | 57.30 | 287.96 | 0.8622 | 110.3 | 131.6 | |
|
previous
or next observation for the same group /

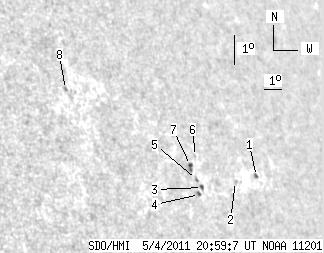

back to the solar disc SDO HMI 2011-05-04 20:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.52 | 1.79 | 1.64 | 1.93 | 13.31 | 123.29 | 60.79 | 287.11 | 0.8906 | -334.5 | -308.7 | |
| 0.00 | 1.34 | 0.00 | 1.38 | 13.07 | 121.87 | 59.38 | 287.16 | 0.8792 | -379.0 | -342.7 | |
| 1.61 | 2.05 | 1.56 | 1.99 | 12.76 | 119.79 | 57.29 | 287.30 | 0.8616 | 271.8 | 270.6 | |
| 1.43 | 1.61 | 1.37 | 1.54 | 12.53 | 119.54 | 57.04 | 287.09 | 0.8590 | 444.1 | 343.5 | |
| 0.00 | 1.61 | 0.00 | 1.55 | 13.00 | 119.53 | 57.03 | 287.63 | 0.8598 | 546.0 | 448.8 | |
| 0.00 | 0.63 | 0.00 | 0.61 | 13.73 | 119.75 | 57.25 | 288.41 | 0.8631 | 211.0 | 184.6 | |
| 1.70 | 3.66 | 1.63 | 3.52 | 13.43 | 119.34 | 56.85 | 288.17 | 0.8591 | 509.9 | 579.9 | |
| 0.00 | 1.34 | 0.00 | 1.13 | 15.50 | 113.42 | 50.92 | 292.33 | 0.8109 | -568.0 | -473.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
