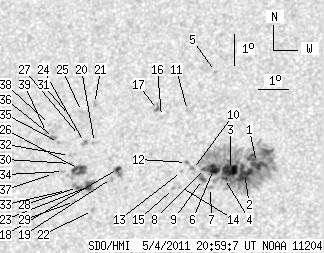

SDO HMI 2011-05-04 20:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 77.26 | 334.27 | 42.22 | 182.65 | 16.63 | 48.23 | -14.27 | 34.01 | 0.4226 | -215.0 | -222.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-04 20:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 14.11 | 243.62 | 7.65 | 132.31 | 16.75 | 50.00 | -12.50 | 30.63 | 0.4085 | -933.5 | -422.8 | |
| 13.66 | -1.00 | 7.40 | -1.00 | 16.40 | 49.63 | -12.87 | 31.82 | 0.4068 | -1180.5 | 999999 | |
| 14.02 | -1.00 | 7.62 | -1.00 | 16.51 | 49.17 | -13.33 | 32.58 | 0.4121 | -1106.5 | 999999 | |
| 2.32 | -1.00 | 1.26 | -1.00 | 16.25 | 49.00 | -13.50 | 33.27 | 0.4103 | -1017.3 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.80 | 19.75 | 48.42 | -14.08 | 29.90 | 0.4611 | -722.0 | -559.1 | |
| 9.47 | -1.00 | 5.16 | -1.00 | 16.55 | 48.62 | -13.88 | 33.58 | 0.4175 | -948.9 | 999999 | |
| 0.00 | 2.86 | 0.00 | 1.55 | 15.97 | 48.56 | -13.94 | 34.50 | 0.4105 | -810.0 | -554.1 | |
| 1.61 | -1.00 | 0.88 | -1.00 | 16.59 | 48.32 | -14.18 | 34.08 | 0.4206 | -756.3 | 999999 | |
| 1.88 | 5.72 | 1.02 | 3.11 | 16.23 | 48.28 | -14.21 | 34.65 | 0.4164 | -743.1 | -488.5 | |
| 0.00 | 3.66 | 0.00 | 2.00 | 16.56 | 47.93 | -14.56 | 34.83 | 0.4238 | -642.0 | -548.8 | |
| 0.00 | 1.88 | 0.00 | 1.04 | 18.48 | 47.61 | -14.89 | 32.84 | 0.4512 | -544.0 | -444.1 | |
| 0.00 | 1.25 | 0.00 | 0.68 | 16.79 | 47.72 | -14.78 | 34.90 | 0.4286 | -667.0 | -534.0 | |
| 0.00 | 1.16 | 0.00 | 0.64 | 16.50 | 47.58 | -14.92 | 35.56 | 0.4263 | -594.0 | -432.5 | |
| 0.00 | 1.25 | 0.00 | 0.68 | 16.02 | 47.55 | -14.95 | 36.30 | 0.4204 | -440.0 | -311.0 | |
| 0.00 | 1.70 | 0.00 | 0.93 | 15.96 | 47.36 | -15.14 | 36.74 | 0.4215 | -744.0 | -565.3 | |
| 0.00 | 0.98 | 0.00 | 0.55 | 18.30 | 46.77 | -15.73 | 34.51 | 0.4562 | -782.0 | -549.3 | |
| 1.34 | 3.04 | 0.75 | 1.69 | 18.53 | 46.61 | -15.88 | 34.47 | 0.4604 | -849.2 | -648.2 | |
| 2.23 | 6.43 | 1.24 | 3.56 | 16.64 | 45.50 | -17.00 | 38.91 | 0.4477 | 906.7 | 909.2 | |
| 0.00 | 1.88 | 0.00 | 1.04 | 16.32 | 45.30 | -17.20 | 39.71 | 0.4460 | 827.0 | 672.1 | |
| 0.00 | 2.14 | 0.00 | 1.20 | 17.50 | 44.62 | -17.88 | 39.07 | 0.4664 | 814.0 | 590.2 | |
| 0.00 | 2.32 | 0.00 | 1.31 | 18.77 | 44.49 | -18.01 | 37.52 | 0.4826 | 818.0 | 663.5 | |
| 0.00 | 1.52 | 0.00 | 0.84 | 15.31 | 44.76 | -17.73 | 42.13 | 0.4398 | 844.0 | 673.1 | |
| 5.72 | 15.00 | 3.17 | 8.32 | 16.08 | 44.56 | -17.94 | 41.25 | 0.4507 | 1029.5 | 791.3 | |
| 0.00 | 2.86 | 0.00 | 1.60 | 17.51 | 44.29 | -18.21 | 39.57 | 0.4698 | 891.0 | 839.2 | |
| 0.00 | 2.32 | 0.00 | 1.31 | 18.52 | 44.08 | -18.42 | 38.47 | 0.4835 | 699.0 | 549.5 | |
| 9.20 | 15.72 | 5.13 | 8.76 | 16.63 | 44.21 | -18.29 | 40.96 | 0.4606 | 932.7 | 740.9 | |
| 0.00 | 1.07 | 0.00 | 0.60 | 17.74 | 44.10 | -18.40 | 39.53 | 0.4743 | 649.0 | 441.0 | |
| 1.70 | -23.00 | 0.94 | -23.00 | 16.06 | 44.20 | -18.30 | 41.85 | 0.4541 | 946.1 | 999999 | |
| 0.00 | 1.70 | 0.00 | 0.94 | 15.61 | 44.14 | -18.35 | 42.63 | 0.4497 | 751.0 | 601.6 | |
| 0.00 | 1.16 | 0.00 | 0.65 | 16.83 | 43.89 | -18.61 | 41.14 | 0.4661 | 695.0 | 585.5 | |
| 0.00 | 0.71 | 0.00 | 0.40 | 18.40 | 43.69 | -18.81 | 39.22 | 0.4859 | 762.0 | 644.0 | |
| 0.00 | 1.16 | 0.00 | 0.65 | 17.09 | 43.83 | -18.67 | 40.85 | 0.4696 | 718.0 | 543.8 | |
| 0.00 | 0.98 | 0.00 | 0.55 | 15.97 | 43.84 | -18.65 | 42.52 | 0.4569 | 632.0 | 470.4 | |
| 0.00 | 1.25 | 0.00 | 0.70 | 16.58 | 43.68 | -18.82 | 41.83 | 0.4654 | 705.0 | 501.1 | |
| 0.00 | 1.07 | 0.00 | 0.60 | 17.53 | 43.42 | -19.08 | 40.84 | 0.4787 | 973.0 | 839.9 | |
| 0.00 | 3.04 | 0.00 | 1.72 | 17.69 | 43.23 | -19.27 | 40.87 | 0.4824 | 898.0 | 756.9 | |
| 0.00 | 0.98 | 0.00 | 0.55 | 16.52 | 43.36 | -19.14 | 42.40 | 0.4681 | 533.0 | 487.7 | |
| 0.00 | 0.71 | 0.00 | 0.41 | 18.12 | 43.05 | -19.45 | 40.53 | 0.4890 | 687.0 | 521.9 | |
| 0.00 | 1.70 | 0.00 | 0.96 | 17.86 | 42.97 | -19.52 | 41.00 | 0.4868 | 654.0 | 499.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
