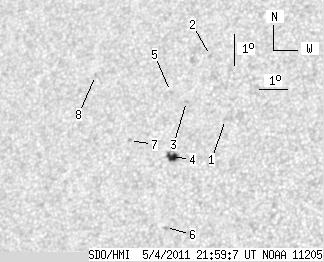

SDO HMI 2011-05-04 21:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.25 | 20.90 | 3.69 | 12.41 | 14.57 | 33.78 | -28.16 | 56.04 | 0.5532 | -561.7 | -366.5 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-04 21:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.14 | 0.00 | 1.25 | 15.02 | 35.61 | -26.33 | 53.56 | 0.5347 | 453.0 | 315.2 | |
| 0.00 | 1.70 | 0.00 | 1.01 | 17.10 | 34.78 | -27.17 | 51.25 | 0.5616 | -785.0 | -576.9 | |
| 0.00 | 1.52 | 0.00 | 0.90 | 15.64 | 34.15 | -27.79 | 54.03 | 0.5570 | -763.0 | -597.0 | |
| 6.25 | 9.29 | 3.69 | 5.49 | 13.90 | 33.86 | -28.08 | 56.99 | 0.5470 | -879.1 | -621.4 | |
| 0.00 | 1.43 | 0.00 | 0.86 | 15.98 | 33.53 | -28.42 | 54.10 | 0.5669 | -651.0 | -539.3 | |
| 0.00 | 1.96 | 0.00 | 1.15 | 11.66 | 33.92 | -28.02 | 60.59 | 0.5302 | -721.0 | -553.7 | |
| 0.00 | 1.43 | 0.00 | 0.86 | 14.46 | 32.29 | -29.66 | 57.49 | 0.5703 | -775.0 | -621.1 | |
| 0.00 | 1.43 | 0.00 | 0.89 | 16.60 | 30.70 | -31.25 | 55.66 | 0.6043 | 481.0 | 316.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
