SDO HMI 2011-05-04 22:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.72 | 11.34 | 5.88 | 11.47 | 13.17 | 120.05 | 58.66 | 287.45 | 0.8732 | 232.3 | 260.7 | |
|
previous
or next observation for the same group /

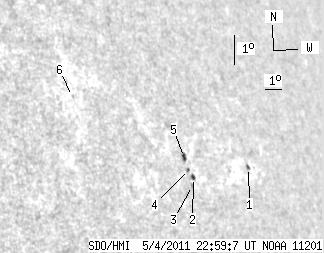

back to the solar disc SDO HMI 2011-05-04 22:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.52 | 2.14 | 1.71 | 2.41 | 13.29 | 123.37 | 61.98 | 286.83 | 0.8994 | -250.0 | -243.3 | |
| 1.70 | 2.23 | 1.69 | 2.23 | 12.76 | 119.70 | 58.31 | 287.05 | 0.8700 | 263.8 | 309.0 | |
| 0.00 | 1.34 | 0.00 | 1.33 | 12.50 | 119.54 | 58.15 | 286.80 | 0.8683 | 557.0 | 449.0 | |
| 0.00 | 1.25 | 0.00 | 1.24 | 13.00 | 119.49 | 58.10 | 287.37 | 0.8687 | 524.0 | 461.9 | |
| 2.50 | 3.75 | 2.48 | 3.72 | 13.37 | 119.39 | 58.00 | 287.81 | 0.8686 | 482.2 | 343.1 | |
| 0.00 | 0.63 | 0.00 | 0.54 | 14.99 | 113.82 | 52.43 | 291.22 | 0.8235 | -232.0 | -245.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
