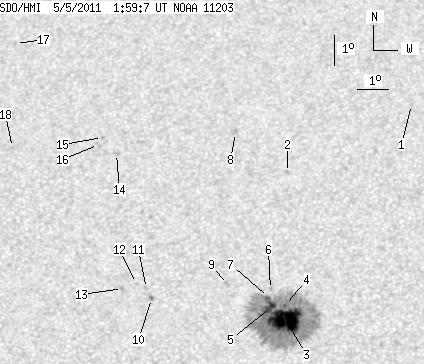

SDO HMI 2011-05-05 01:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 56.30 | 331.53 | 30.01 | 177.09 | 18.09 | 61.09 | 1.35 | 356.41 | 0.3757 | -777.4 | -363.8 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-05 01:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.71 | 0.00 | 0.41 | 24.95 | 65.75 | 6.01 | 348.82 | 0.4919 | -526.0 | -452.8 | |
| 0.00 | 1.79 | 0.00 | 0.99 | 22.60 | 61.57 | 1.84 | 356.20 | 0.4476 | -662.0 | -578.2 | |
| 46.83 | 308.12 | 24.95 | 164.20 | 17.73 | 61.45 | 1.71 | 355.56 | 0.3698 | -1353.1 | -417.6 | |
| 1.16 | -3.00 | 0.62 | -3.00 | 18.19 | 61.42 | 1.69 | 355.73 | 0.3772 | -556.9 | 999999 | |
| 6.70 | -3.00 | 3.58 | -3.00 | 18.12 | 60.98 | 1.24 | 356.84 | 0.3756 | -926.1 | 999999 | |
| 0.00 | 1.61 | 0.00 | 0.86 | 18.71 | 60.98 | 1.25 | 356.92 | 0.3851 | -528.0 | -460.0 | |
| 1.61 | -3.00 | 0.86 | -3.00 | 18.45 | 60.91 | 1.18 | 357.05 | 0.3809 | -658.1 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.10 | 23.96 | 59.87 | 0.13 | 359.74 | 0.4678 | -820.0 | -563.0 | |
| 0.00 | 2.50 | 0.00 | 1.34 | 18.88 | 59.61 | -0.13 | 0.31 | 0.3872 | -750.0 | -515.1 | |
| 0.00 | 1.70 | 0.00 | 0.91 | 18.42 | 57.19 | -2.55 | 6.37 | 0.3822 | 998.0 | 737.3 | |
| 0.00 | 1.34 | 0.00 | 0.72 | 18.75 | 57.02 | -2.71 | 6.67 | 0.3877 | 802.0 | 641.5 | |
| 0.00 | 1.34 | 0.00 | 0.72 | 18.91 | 56.70 | -3.04 | 7.39 | 0.3910 | 664.0 | 488.1 | |
| 0.00 | 1.97 | 0.00 | 1.06 | 18.75 | 56.25 | -3.48 | 8.53 | 0.3894 | 933.0 | 713.9 | |
| 0.00 | 2.23 | 0.00 | 1.25 | 23.25 | 55.95 | -3.79 | 7.60 | 0.4607 | 808.0 | 634.3 | |
| 0.00 | 1.25 | 0.00 | 0.70 | 23.80 | 55.47 | -4.27 | 8.36 | 0.4701 | 803.0 | 540.6 | |
| 0.00 | 2.41 | 0.00 | 1.35 | 23.56 | 55.34 | -4.39 | 8.68 | 0.4668 | 726.0 | 581.7 | |
| 0.00 | 1.43 | 0.00 | 0.83 | 27.09 | 52.38 | -7.36 | 12.53 | 0.5275 | 546.0 | 448.4 | |
| 0.00 | 1.16 | 0.00 | 0.65 | 23.48 | 52.50 | -7.24 | 14.16 | 0.4742 | 780.0 | 651.8 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
