SDO HMI 2011-05-05 01:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 74.63 | 275.77 | 40.28 | 148.93 | 16.56 | 48.14 | -11.60 | 28.85 | 0.3995 | -272.3 | -216.0 | |
|
previous
or next observation for the same group /

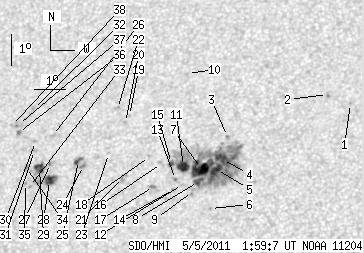

back to the solar disc SDO HMI 2011-05-05 01:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.53 | 18.50 | 53.99 | -5.75 | 14.06 | 0.3926 | 914.0 | 777.5 | |
| 0.00 | 1.88 | 0.00 | 1.01 | 18.80 | 53.24 | -6.50 | 15.58 | 0.4004 | 776.0 | 622.1 | |
| 0.00 | 1.07 | 0.00 | 0.58 | 17.46 | 50.09 | -9.65 | 23.83 | 0.3973 | -780.0 | -587.3 | |
| 10.46 | 188.73 | 5.61 | 101.36 | 16.72 | 49.97 | -9.77 | 24.92 | 0.3873 | -903.7 | -493.0 | |
| 7.24 | -4.00 | 3.88 | -4.00 | 16.40 | 49.79 | -9.94 | 25.68 | 0.3838 | -1255.9 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 15.15 | 49.66 | -10.07 | 27.53 | 0.3668 | -834.0 | -696.3 | |
| 22.97 | -4.00 | 12.34 | -4.00 | 16.44 | 49.31 | -10.43 | 26.71 | 0.3878 | -999.0 | 999999 | |
| 5.00 | -4.00 | 2.68 | -4.00 | 16.02 | 49.24 | -10.50 | 27.39 | 0.3824 | -966.9 | 999999 | |
| 0.00 | 2.68 | 0.00 | 1.43 | 15.70 | 49.06 | -10.67 | 28.18 | 0.3792 | -734.0 | -694.3 | |
| 0.00 | 0.71 | 0.00 | 0.39 | 19.54 | 48.66 | -11.07 | 24.61 | 0.4364 | -650.0 | -556.8 | |
| 8.58 | -4.00 | 4.62 | -4.00 | 16.51 | 48.73 | -11.01 | 27.88 | 0.3931 | -969.2 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.81 | 15.93 | 48.73 | -11.01 | 28.61 | 0.3850 | -593.0 | -337.0 | |
| 0.00 | 1.79 | 0.00 | 0.96 | 16.10 | 48.49 | -11.24 | 28.91 | 0.3891 | -795.0 | -621.4 | |
| 0.00 | 1.52 | 0.00 | 0.81 | 15.78 | 48.45 | -11.29 | 29.43 | 0.3850 | -600.0 | -528.1 | |
| 2.59 | -4.00 | 1.40 | -4.00 | 16.61 | 48.34 | -11.40 | 28.58 | 0.3975 | -676.2 | 999999 | |
| 0.00 | 2.32 | 0.00 | 1.25 | 16.62 | 48.01 | -11.72 | 29.25 | 0.4001 | -632.0 | -463.8 | |
| 0.00 | 1.70 | 0.00 | 0.91 | 15.88 | 47.80 | -11.93 | 30.66 | 0.3917 | -888.0 | -743.3 | |
| 0.00 | 1.16 | 0.00 | 0.63 | 16.85 | 47.61 | -12.12 | 29.78 | 0.4065 | -577.0 | -455.2 | |
| 0.00 | 1.34 | 0.00 | 0.74 | 18.19 | 46.87 | -12.87 | 29.56 | 0.4306 | -699.0 | -470.6 | |
| 0.00 | 1.34 | 0.00 | 0.73 | 17.97 | 46.75 | -12.98 | 30.06 | 0.4284 | -838.0 | -679.6 | |
| 0.00 | 4.65 | 0.00 | 2.51 | 16.18 | 46.82 | -12.92 | 32.26 | 0.4040 | 639.0 | 675.3 | |
| 0.00 | 1.97 | 0.00 | 1.08 | 18.43 | 46.46 | -13.28 | 30.05 | 0.4370 | -630.0 | -553.7 | |
| 0.00 | 1.07 | 0.00 | 0.58 | 16.97 | 46.27 | -13.46 | 32.25 | 0.4190 | -510.0 | -481.0 | |
| 0.00 | 3.04 | 0.00 | 1.66 | 16.59 | 45.49 | -14.25 | 34.23 | 0.4210 | 922.0 | 764.9 | |
| 3.49 | 4.02 | 1.91 | 2.20 | 16.76 | 45.31 | -14.42 | 34.33 | 0.4246 | 900.2 | 706.2 | |
| 0.00 | 1.79 | 0.00 | 0.99 | 17.58 | 44.39 | -15.34 | 34.83 | 0.4434 | 788.0 | 575.8 | |
| 0.00 | 2.06 | 0.00 | 1.13 | 16.68 | 44.41 | -15.33 | 36.07 | 0.4319 | 942.0 | 774.0 | |
| 7.42 | 29.76 | 4.06 | 16.31 | 16.13 | 44.42 | -15.32 | 36.85 | 0.4250 | 1081.5 | 771.5 | |
| 6.88 | -28.00 | 3.78 | -28.00 | 16.52 | 44.06 | -15.68 | 36.90 | 0.4332 | 911.0 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.59 | 17.40 | 43.85 | -15.88 | 36.02 | 0.4460 | 653.0 | 528.6 | |
| 0.00 | 2.50 | 0.00 | 1.38 | 17.11 | 43.84 | -15.89 | 36.44 | 0.4425 | 830.0 | 566.1 | |
| 0.00 | 1.25 | 0.00 | 0.70 | 18.48 | 43.68 | -16.05 | 34.85 | 0.4609 | 763.0 | 564.2 | |
| 0.00 | 1.25 | 0.00 | 0.69 | 15.95 | 43.78 | -15.96 | 38.23 | 0.4289 | 838.0 | 671.4 | |
| 0.00 | 2.68 | 0.00 | 1.48 | 16.56 | 43.63 | -16.11 | 37.58 | 0.4378 | 711.0 | 529.2 | |
| 0.00 | 1.07 | 0.00 | 0.59 | 16.05 | 43.64 | -16.10 | 38.32 | 0.4315 | 657.0 | 493.7 | |
| 0.00 | 2.06 | 0.00 | 1.14 | 17.70 | 43.26 | -16.47 | 36.58 | 0.4552 | 907.0 | 812.8 | |
| 0.00 | 4.56 | 0.00 | 2.54 | 17.96 | 43.24 | -16.50 | 36.27 | 0.4586 | 621.0 | 590.7 | |
| 0.00 | 1.16 | 0.00 | 0.65 | 17.93 | 43.01 | -16.73 | 36.68 | 0.4604 | 669.0 | 520.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
