SDO HMI 2011-05-05 03:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 5.45 | 15.91 | 3.13 | 9.15 | 14.39 | 34.01 | -24.62 | 52.77 | 0.5093 | -776.9 | -556.8 | |
|
previous
or next observation for the same group /

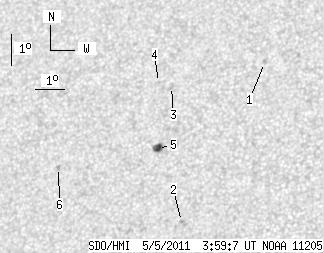

back to the solar disc SDO HMI 2011-05-05 03:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.15 | 0.00 | 1.22 | 16.47 | 37.14 | -21.50 | 45.79 | 0.4923 | -555.0 | -497.4 | |
| 0.00 | 1.61 | 0.00 | 0.90 | 11.49 | 34.85 | -23.78 | 56.86 | 0.4739 | -727.0 | -517.9 | |
| 0.00 | 2.68 | 0.00 | 1.55 | 15.79 | 34.04 | -24.60 | 50.58 | 0.5206 | -729.0 | -560.4 | |
| 0.00 | 1.25 | 0.00 | 0.73 | 15.93 | 33.57 | -25.07 | 50.87 | 0.5273 | -564.0 | -461.4 | |
| 5.45 | 6.61 | 3.13 | 3.80 | 13.82 | 33.79 | -24.84 | 53.98 | 0.5063 | -959.8 | -721.6 | |
| 0.00 | 1.61 | 0.00 | 0.95 | 13.32 | 30.41 | -28.23 | 58.09 | 0.5443 | -737.0 | -621.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
