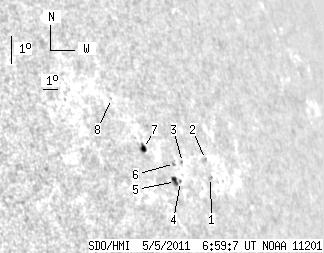

SDO HMI 2011-05-05 06:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.26 | 16.98 | 6.93 | 19.28 | 13.41 | 119.26 | 62.27 | 286.89 | 0.9013 | 119.0 | 12.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-05 06:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.61 | 0.00 | 2.01 | 13.13 | 121.87 | 64.88 | 286.06 | 0.9192 | -314.0 | -311.6 | |
| 0.00 | 1.25 | 0.00 | 1.56 | 13.69 | 121.79 | 64.80 | 286.68 | 0.9194 | -412.0 | -337.5 | |
| 0.00 | 1.16 | 0.00 | 1.36 | 13.49 | 120.04 | 63.05 | 286.80 | 0.9073 | 292.0 | 129.5 | |
| 0.00 | 1.16 | 0.00 | 1.33 | 12.87 | 119.62 | 62.63 | 286.21 | 0.9034 | 237.0 | 173.8 | |
| 3.58 | 4.56 | 4.04 | 5.15 | 12.85 | 119.27 | 62.28 | 286.26 | 0.9008 | 509.8 | 405.2 | |
| 0.00 | 1.70 | 0.00 | 1.94 | 13.43 | 119.46 | 62.47 | 286.85 | 0.9031 | 612.0 | 448.3 | |
| 2.68 | 4.65 | 2.89 | 5.00 | 13.79 | 117.58 | 60.59 | 287.65 | 0.8897 | -421.8 | -299.5 | |
| 0.00 | 0.89 | 0.00 | 0.93 | 15.29 | 116.25 | 59.26 | 289.62 | 0.8821 | 284.0 | 227.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
