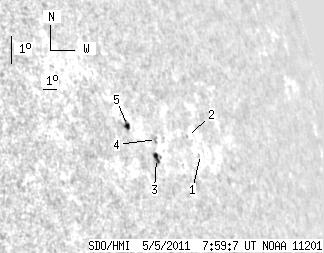

SDO HMI 2011-05-05 07:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 6.26 | 13.86 | 7.06 | 15.84 | 13.34 | 118.93 | 62.49 | 286.75 | 0.9028 | 66.6 | 10.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-05 07:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.45 | 0.00 | 0.58 | 13.18 | 122.56 | 66.11 | 285.88 | 0.9272 | -315.0 | -308.2 | |
| 0.00 | 0.72 | 0.00 | 0.91 | 13.70 | 121.84 | 65.40 | 286.57 | 0.9233 | -363.0 | -343.8 | |
| 3.58 | 5.72 | 4.11 | 6.60 | 12.85 | 119.20 | 62.75 | 286.16 | 0.9042 | 477.5 | 323.8 | |
| 0.00 | 1.52 | 0.00 | 1.77 | 13.46 | 119.48 | 63.04 | 286.77 | 0.9071 | 551.0 | 437.8 | |
| 2.68 | 5.45 | 2.95 | 5.98 | 13.80 | 117.68 | 61.24 | 287.51 | 0.8946 | -395.3 | -326.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
