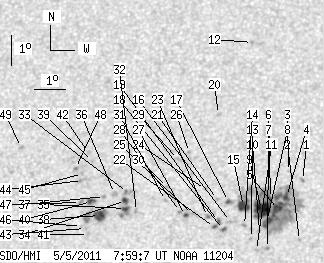

SDO HMI 2011-05-05 07:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 75.17 | 285.07 | 40.11 | 152.26 | 16.44 | 48.14 | -8.30 | 21.67 | 0.3744 | -250.3 | -189.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-05 07:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.88 | 0.00 | 1.00 | 17.25 | 50.70 | -5.74 | 14.94 | 0.3723 | 573.0 | 333.7 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 15.32 | 50.66 | -5.78 | 16.57 | 0.3422 | -906.0 | -765.1 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 17.54 | 50.24 | -6.20 | 15.84 | 0.3789 | -598.0 | -453.2 | |
| 3.49 | 177.89 | 1.85 | 94.56 | 16.74 | 50.21 | -6.23 | 16.56 | 0.3665 | -911.1 | -478.7 | |
| 12.34 | -4.00 | 6.55 | -4.00 | 16.32 | 49.97 | -6.47 | 17.52 | 0.3611 | -1137.4 | 999999 | |
| 0.98 | -4.00 | 0.52 | -4.00 | 16.68 | 49.70 | -6.74 | 17.87 | 0.3680 | -702.3 | 999999 | |
| 0.00 | 2.06 | 0.00 | 1.08 | 15.07 | 49.66 | -6.78 | 19.48 | 0.3434 | -1057.0 | -854.3 | |
| 6.26 | -4.00 | 3.32 | -4.00 | 15.90 | 49.60 | -6.84 | 18.82 | 0.3566 | -1080.5 | 999999 | |
| 18.95 | -4.00 | 10.07 | -4.00 | 16.32 | 49.43 | -7.01 | 18.87 | 0.3639 | -1133.0 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 15.65 | 49.39 | -7.05 | 19.61 | 0.3538 | -853.0 | -646.6 | |
| 0.00 | 1.43 | 0.00 | 0.75 | 15.01 | 49.32 | -7.13 | 20.46 | 0.3444 | -678.0 | -558.3 | |
| 0.00 | 1.16 | 0.00 | 0.64 | 21.81 | 48.89 | -7.55 | 15.80 | 0.4499 | 743.0 | 596.2 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 15.39 | 49.14 | -7.30 | 20.50 | 0.3513 | -768.0 | -693.5 | |
| 0.00 | 1.52 | 0.00 | 0.81 | 15.81 | 48.91 | -7.53 | 20.67 | 0.3590 | -901.0 | -703.0 | |
| 9.03 | -4.00 | 4.81 | -4.00 | 16.42 | 48.85 | -7.59 | 20.19 | 0.3686 | -993.1 | 999999 | |
| 0.00 | 3.13 | 0.00 | 1.66 | 15.95 | 48.46 | -7.98 | 21.64 | 0.3637 | -834.0 | -588.1 | |
| 1.79 | 3.40 | 0.95 | 1.81 | 16.59 | 48.37 | -8.07 | 21.20 | 0.3739 | -679.2 | -692.5 | |
| 0.80 | 1.97 | 0.43 | 1.04 | 15.69 | 48.25 | -8.20 | 22.44 | 0.3611 | -1051.7 | -844.5 | |
| 1.43 | 4.02 | 0.76 | 2.14 | 15.95 | 48.08 | -8.37 | 22.57 | 0.3661 | -806.8 | -719.8 | |
| 0.00 | 2.32 | 0.00 | 1.27 | 19.43 | 47.91 | -8.53 | 19.59 | 0.4190 | -739.0 | -568.4 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 16.66 | 48.01 | -8.43 | 21.96 | 0.3770 | -762.0 | -585.4 | |
| 1.16 | -19.00 | 0.62 | -19.00 | 15.76 | 47.96 | -8.48 | 23.07 | 0.3639 | -772.5 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.05 | 16.11 | 47.72 | -8.72 | 23.24 | 0.3708 | -767.0 | -513.7 | |
| 0.00 | 0.89 | 0.00 | 0.48 | 16.99 | 47.62 | -8.83 | 22.55 | 0.3844 | -707.0 | -576.6 | |
| 0.00 | 0.63 | 0.00 | 0.33 | 16.18 | 47.24 | -9.20 | 24.30 | 0.3749 | 273.0 | 86.1 | |
| 0.00 | 1.07 | 0.00 | 0.58 | 18.19 | 47.04 | -9.40 | 22.59 | 0.4057 | -696.0 | -571.7 | |
| 0.98 | 2.15 | 0.53 | 1.15 | 16.15 | 47.02 | -9.43 | 24.84 | 0.3760 | 977.6 | 778.9 | |
| 0.00 | 1.79 | 0.00 | 0.96 | 16.28 | 46.85 | -9.59 | 25.07 | 0.3790 | 890.0 | 710.8 | |
| 0.00 | 2.86 | 0.00 | 1.55 | 17.97 | 46.70 | -9.74 | 23.55 | 0.4046 | -778.0 | -613.8 | |
| 0.00 | 1.88 | 0.00 | 1.01 | 17.06 | 46.39 | -10.05 | 25.20 | 0.3935 | 712.0 | 590.3 | |
| 0.00 | 1.79 | 0.00 | 0.96 | 16.64 | 46.35 | -10.09 | 25.77 | 0.3877 | 125.0 | 92.7 | |
| 0.00 | 2.06 | 0.00 | 1.11 | 16.30 | 45.44 | -11.00 | 28.18 | 0.3895 | 938.0 | 736.2 | |
| 0.00 | 3.84 | 0.00 | 2.08 | 16.92 | 45.11 | -11.33 | 28.10 | 0.4006 | 686.0 | 735.0 | |
| 2.32 | 4.20 | 1.25 | 2.27 | 16.66 | 45.07 | -11.38 | 28.53 | 0.3974 | 1059.3 | 931.6 | |
| 2.77 | 8.58 | 1.49 | 4.62 | 16.40 | 45.08 | -11.36 | 28.82 | 0.3937 | 950.7 | 632.7 | |
| 0.00 | 2.77 | 0.00 | 1.50 | 16.89 | 44.70 | -11.75 | 29.00 | 0.4035 | 826.0 | 704.9 | |
| 0.00 | 1.70 | 0.00 | 0.92 | 16.80 | 44.38 | -12.06 | 29.77 | 0.4047 | 894.0 | 713.2 | |
| 8.76 | 19.84 | 4.73 | 10.71 | 16.19 | 44.26 | -12.18 | 30.82 | 0.3973 | 1104.0 | 812.5 | |
| 0.00 | 0.54 | 0.00 | 0.29 | 17.94 | 43.91 | -12.53 | 29.27 | 0.4239 | 755.0 | 607.3 | |
| 4.11 | 4.38 | 2.23 | 2.37 | 16.64 | 43.97 | -12.47 | 30.80 | 0.4059 | 891.9 | 991.0 | |
| 0.00 | 1.52 | 0.00 | 0.82 | 15.58 | 43.94 | -12.50 | 32.31 | 0.3918 | 791.0 | 616.4 | |
| 0.00 | 1.61 | 0.00 | 0.88 | 18.24 | 43.76 | -12.68 | 29.20 | 0.4291 | 809.0 | 619.3 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 15.78 | 43.83 | -12.61 | 32.25 | 0.3953 | 908.0 | 733.8 | |
| 0.00 | 3.40 | 0.00 | 1.85 | 17.33 | 43.63 | -12.81 | 30.58 | 0.4179 | 623.0 | 612.2 | |
| 0.00 | 1.34 | 0.00 | 0.73 | 17.56 | 43.61 | -12.83 | 30.32 | 0.4211 | 787.0 | 730.5 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 15.84 | 43.70 | -12.74 | 32.43 | 0.3973 | 604.0 | 463.5 | |
| 0.00 | 2.95 | 0.00 | 1.60 | 16.62 | 43.62 | -12.83 | 31.54 | 0.4084 | 696.0 | 579.1 | |
| 0.00 | 1.34 | 0.00 | 0.73 | 17.72 | 43.37 | -13.07 | 30.57 | 0.4252 | 822.0 | 719.9 | |
| 0.00 | 1.88 | 0.00 | 1.04 | 18.44 | 41.55 | -14.90 | 32.99 | 0.4498 | 838.0 | 652.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
