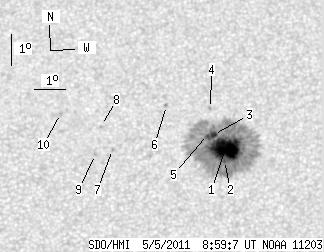

SDO HMI 2011-05-05 08:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 46.48 | 313.20 | 24.87 | 167.62 | 17.82 | 61.21 | 5.31 | 346.50 | 0.3797 | -1063.9 | -425.3 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-05 08:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.65 | 305.70 | 22.29 | 163.60 | 17.77 | 61.33 | 5.43 | 346.18 | 0.3792 | -1435.3 | -441.7 | |
| 1.43 | -1.00 | 0.76 | -1.00 | 17.38 | 61.29 | 5.39 | 346.03 | 0.3729 | -1205.8 | 999999 | |
| 2.95 | -1.00 | 1.58 | -1.00 | 18.23 | 60.96 | 5.06 | 347.37 | 0.3850 | -978.7 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.72 | 19.08 | 60.89 | 4.99 | 348.02 | 0.3981 | -748.0 | -568.2 | |
| 0.45 | -1.00 | 0.24 | -1.00 | 18.23 | 60.77 | 4.87 | 347.83 | 0.3843 | -883.6 | 999999 | |
| 0.00 | 1.70 | 0.00 | 0.92 | 19.17 | 59.48 | 3.58 | 351.38 | 0.3955 | -815.0 | -692.8 | |
| 0.00 | 1.43 | 0.00 | 0.76 | 17.73 | 57.73 | 1.84 | 355.23 | 0.3690 | 856.0 | 706.7 | |
| 0.00 | 0.80 | 0.00 | 0.43 | 18.51 | 57.39 | 1.50 | 356.26 | 0.3812 | 754.0 | 700.0 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 17.56 | 57.19 | 1.30 | 356.60 | 0.3657 | 872.0 | 654.6 | |
| 0.00 | 1.25 | 0.00 | 0.67 | 18.90 | 56.08 | 0.19 | 359.54 | 0.3868 | 726.0 | 631.1 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
