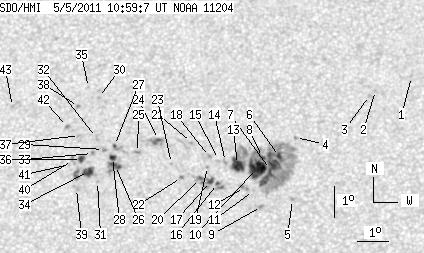

SDO HMI 2011-05-05 10:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 86.24 | 309.65 | 45.82 | 164.71 | 16.44 | 48.16 | -6.63 | 17.60 | 0.3652 | -236.8 | -114.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-05 10:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.48 | 19.27 | 54.41 | -0.39 | 0.94 | 0.3926 | 762.0 | 626.5 | |
| 0.00 | 1.34 | 0.00 | 0.72 | 18.81 | 53.26 | -1.54 | 3.79 | 0.3860 | 920.0 | 665.6 | |
| 0.00 | 0.89 | 0.00 | 0.48 | 18.64 | 53.07 | -1.73 | 4.29 | 0.3836 | 701.0 | 602.5 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 17.29 | 50.74 | -4.06 | 10.68 | 0.3666 | 500.0 | 320.0 | |
| 0.00 | 1.79 | 0.00 | 0.94 | 15.29 | 50.68 | -4.11 | 11.99 | 0.3347 | -1052.0 | -814.2 | |
| 3.57 | 185.27 | 1.90 | 98.14 | 16.67 | 50.24 | -4.55 | 12.31 | 0.3584 | -941.7 | -425.0 | |
| 22.61 | -6.00 | 11.96 | -6.00 | 16.26 | 49.97 | -4.83 | 13.30 | 0.3528 | -1052.4 | 999999 | |
| 1.79 | -6.00 | 0.95 | -6.00 | 16.64 | 49.71 | -5.09 | 13.73 | 0.3599 | -738.5 | 999999 | |
| 0.00 | 1.79 | 0.00 | 0.94 | 15.07 | 49.72 | -5.08 | 14.87 | 0.3349 | -1035.0 | -869.3 | |
| 20.91 | -6.00 | 11.07 | -6.00 | 16.29 | 49.53 | -5.27 | 14.45 | 0.3550 | -1103.2 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.47 | 15.58 | 49.45 | -5.35 | 15.19 | 0.3442 | -849.0 | -694.9 | |
| 0.00 | 4.02 | 0.00 | 2.12 | 15.68 | 49.16 | -5.63 | 15.88 | 0.3470 | -844.0 | -855.6 | |
| 11.71 | -6.00 | 6.21 | -6.00 | 16.42 | 48.92 | -5.88 | 15.92 | 0.3597 | -947.9 | 999999 | |
| 0.00 | 2.32 | 0.00 | 1.23 | 16.52 | 48.54 | -6.26 | 16.81 | 0.3630 | -771.0 | -586.7 | |
| 0.00 | 0.80 | 0.00 | 0.43 | 16.59 | 48.31 | -6.49 | 17.32 | 0.3651 | -676.0 | -649.0 | |
| 0.89 | 5.72 | 0.47 | 3.02 | 15.82 | 48.31 | -6.49 | 18.02 | 0.3532 | -854.0 | -800.9 | |
| 2.68 | 15.19 | 1.42 | 8.05 | 15.88 | 48.08 | -6.72 | 18.53 | 0.3554 | -774.0 | -369.8 | |
| 0.00 | 1.25 | 0.00 | 0.67 | 16.69 | 48.02 | -6.77 | 17.96 | 0.3681 | -792.0 | -635.2 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 16.37 | 47.97 | -6.83 | 18.37 | 0.3634 | -674.0 | -497.2 | |
| 1.25 | -17.00 | 0.66 | -17.00 | 15.98 | 47.76 | -7.04 | 19.26 | 0.3586 | -382.9 | 999999 | |
| 0.00 | 0.71 | 0.00 | 0.38 | 17.15 | 47.43 | -7.37 | 18.98 | 0.3782 | -769.0 | -599.5 | |
| 0.00 | 1.97 | 0.00 | 1.04 | 16.02 | 47.16 | -7.64 | 20.73 | 0.3625 | 932.0 | 626.2 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 16.47 | 46.82 | -7.98 | 21.09 | 0.3713 | -618.0 | -371.6 | |
| 1.70 | 8.67 | 0.91 | 4.65 | 17.25 | 46.37 | -8.42 | 21.36 | 0.3857 | 847.1 | 769.3 | |
| 0.00 | 2.06 | 0.00 | 1.10 | 16.84 | 45.72 | -9.08 | 23.29 | 0.3835 | 848.0 | 666.3 | |
| 4.74 | 18.32 | 2.54 | 9.82 | 16.43 | 45.04 | -9.76 | 25.30 | 0.3821 | 1100.0 | 709.3 | |
| 1.07 | 5.99 | 0.58 | 3.22 | 17.07 | 44.97 | -9.83 | 24.71 | 0.3919 | 856.2 | 702.5 | |
| 3.04 | -26.00 | 1.63 | -26.00 | 16.69 | 44.93 | -9.87 | 25.25 | 0.3866 | 956.8 | 999999 | |
| 0.00 | 2.86 | 0.00 | 1.54 | 16.95 | 44.63 | -10.17 | 25.61 | 0.3925 | 852.0 | 683.1 | |
| 0.00 | 1.07 | 0.00 | 0.58 | 18.64 | 44.37 | -10.43 | 24.31 | 0.4186 | 772.0 | 580.8 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 15.92 | 44.49 | -10.31 | 27.16 | 0.3787 | 859.0 | 660.5 | |
| 0.00 | 2.32 | 0.00 | 1.25 | 17.34 | 44.38 | -10.42 | 25.70 | 0.3998 | 706.0 | 648.2 | |
| 0.00 | 1.61 | 0.00 | 0.87 | 16.82 | 44.28 | -10.52 | 26.51 | 0.3931 | 964.0 | 792.4 | |
| 6.88 | 17.61 | 3.69 | 9.45 | 16.24 | 44.18 | -10.61 | 27.43 | 0.3856 | 1086.9 | 778.3 | |
| 0.00 | 1.16 | 0.00 | 0.64 | 18.97 | 44.02 | -10.78 | 24.67 | 0.4256 | 489.0 | 404.1 | |
| 3.40 | 4.02 | 1.83 | 2.17 | 16.63 | 43.94 | -10.86 | 27.48 | 0.3929 | 856.2 | 791.1 | |
| 0.00 | 2.14 | 0.00 | 1.16 | 17.41 | 43.83 | -10.97 | 26.78 | 0.4047 | 736.0 | 548.5 | |
| 0.00 | 1.70 | 0.00 | 0.93 | 18.36 | 43.74 | -11.06 | 25.90 | 0.4187 | 832.0 | 675.7 | |
| 0.00 | 3.31 | 0.00 | 1.77 | 15.70 | 43.83 | -10.97 | 28.90 | 0.3806 | 782.0 | 658.9 | |
| 0.00 | 2.95 | 0.00 | 1.59 | 16.61 | 43.65 | -11.15 | 28.13 | 0.3947 | 712.0 | 571.2 | |
| 0.00 | 1.25 | 0.00 | 0.67 | 16.48 | 43.56 | -11.24 | 28.48 | 0.3936 | 611.0 | 496.1 | |
| 0.00 | 1.61 | 0.00 | 0.87 | 17.71 | 43.42 | -11.38 | 27.27 | 0.4119 | 904.0 | 723.2 | |
| 0.00 | 1.88 | 0.00 | 1.03 | 18.39 | 41.58 | -13.22 | 30.05 | 0.4351 | 832.0 | 633.7 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
