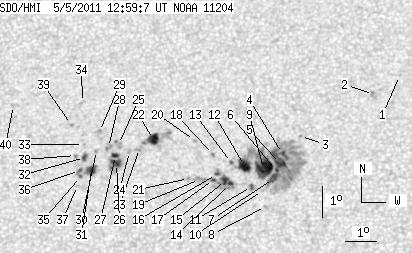

SDO HMI 2011-05-05 12:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.61 | 339.27 | 47.55 | 180.08 | 16.42 | 48.21 | -5.49 | 14.72 | 0.3594 | -141.5 | -147.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-05 12:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.98 | 0.00 | 0.53 | 19.27 | 53.89 | 0.19 | 359.55 | 0.3925 | 527.0 | 466.1 | |
| 0.00 | 3.31 | 0.00 | 1.77 | 18.64 | 53.06 | -0.64 | 1.60 | 0.3826 | 571.0 | 611.4 | |
| 0.00 | 1.43 | 0.00 | 0.76 | 17.28 | 50.75 | -2.95 | 7.80 | 0.3635 | 336.0 | 298.9 | |
| 1.25 | 197.92 | 0.66 | 104.67 | 16.73 | 50.19 | -3.51 | 9.52 | 0.3561 | -895.8 | -421.6 | |
| 5.36 | -4.00 | 2.83 | -4.00 | 16.41 | 50.13 | -3.57 | 9.83 | 0.3510 | -1090.2 | 999999 | |
| 1.07 | -4.00 | 0.57 | -4.00 | 16.19 | 50.01 | -3.69 | 10.28 | 0.3478 | -1065.9 | 999999 | |
| 6.70 | -4.00 | 3.53 | -4.00 | 15.93 | 49.92 | -3.78 | 10.67 | 0.3439 | -1098.9 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.03 | 15.04 | 49.69 | -4.01 | 11.87 | 0.3302 | -939.0 | -738.7 | |
| 23.68 | -4.00 | 12.52 | -4.00 | 16.25 | 49.60 | -4.10 | 11.36 | 0.3501 | -1118.6 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 15.55 | 49.58 | -4.12 | 11.84 | 0.3388 | -894.0 | -710.0 | |
| 0.80 | 2.95 | 0.42 | 1.55 | 15.68 | 49.23 | -4.47 | 12.72 | 0.3421 | -1084.3 | -842.5 | |
| 11.88 | -4.00 | 6.29 | -4.00 | 16.35 | 49.00 | -4.70 | 12.91 | 0.3538 | -971.8 | 999999 | |
| 1.43 | 2.41 | 0.76 | 1.28 | 16.45 | 48.58 | -5.12 | 13.93 | 0.3569 | -704.4 | -467.2 | |
| 1.97 | 27.61 | 1.04 | 14.58 | 15.78 | 48.57 | -5.13 | 14.46 | 0.3462 | -1049.2 | -623.7 | |
| 3.93 | -14.00 | 2.08 | -14.00 | 15.88 | 48.41 | -5.29 | 14.81 | 0.3485 | -902.3 | 999999 | |
| 1.52 | -14.00 | 0.80 | -14.00 | 16.07 | 48.12 | -5.58 | 15.43 | 0.3528 | -539.2 | 999999 | |
| 1.79 | -14.00 | 0.94 | -14.00 | 15.91 | 48.03 | -5.67 | 15.80 | 0.3506 | -617.5 | 999999 | |
| 0.00 | 1.97 | 0.00 | 1.04 | 16.71 | 48.01 | -5.70 | 15.23 | 0.3634 | -661.0 | -536.5 | |
| 0.00 | 5.81 | 0.00 | 3.07 | 15.91 | 47.59 | -6.11 | 16.96 | 0.3527 | 199.0 | -88.3 | |
| 0.00 | 1.52 | 0.00 | 0.81 | 17.17 | 47.39 | -6.31 | 16.42 | 0.3733 | -733.0 | -498.8 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 15.95 | 47.24 | -6.46 | 17.83 | 0.3550 | 830.0 | 602.8 | |
| 9.38 | 25.11 | 5.02 | 13.44 | 17.21 | 46.08 | -7.62 | 19.54 | 0.3805 | 1066.6 | 508.7 | |
| 0.00 | 3.84 | 0.00 | 2.06 | 16.93 | 45.64 | -8.06 | 20.84 | 0.3786 | 846.0 | 728.4 | |
| 0.00 | 2.06 | 0.00 | 1.10 | 16.83 | 45.33 | -8.37 | 21.67 | 0.3790 | 958.0 | 759.1 | |
| 0.00 | 4.91 | 0.00 | 2.64 | 17.06 | 44.97 | -8.73 | 22.27 | 0.3846 | 876.0 | 779.0 | |
| 5.45 | 19.21 | 2.91 | 10.27 | 16.45 | 44.93 | -8.77 | 23.00 | 0.3758 | 1111.0 | 676.2 | |
| 2.86 | -26.00 | 1.53 | -26.00 | 16.71 | 44.89 | -8.81 | 22.83 | 0.3799 | 865.8 | 999999 | |
| 0.00 | 4.02 | 0.00 | 2.16 | 16.97 | 44.65 | -9.05 | 23.09 | 0.3852 | 968.0 | 733.5 | |
| 0.00 | 2.32 | 0.00 | 1.25 | 17.49 | 44.34 | -9.36 | 23.25 | 0.3949 | 764.0 | 652.9 | |
| 0.00 | 1.34 | 0.00 | 0.72 | 16.88 | 44.27 | -9.43 | 24.05 | 0.3863 | 876.0 | 748.1 | |
| 6.52 | 13.49 | 3.49 | 7.22 | 16.27 | 44.14 | -9.56 | 25.04 | 0.3782 | 1118.3 | 841.9 | |
| 1.70 | 3.48 | 0.91 | 1.87 | 16.66 | 43.90 | -9.80 | 25.14 | 0.3856 | 967.4 | 819.0 | |
| 0.00 | 0.80 | 0.00 | 0.43 | 17.08 | 43.84 | -9.86 | 24.78 | 0.3920 | 651.0 | 587.0 | |
| 0.00 | 2.14 | 0.00 | 1.17 | 18.44 | 43.73 | -9.97 | 23.55 | 0.4126 | 676.0 | 489.5 | |
| 0.98 | -31.00 | 0.53 | -31.00 | 16.05 | 43.80 | -9.90 | 26.08 | 0.3774 | 892.4 | 999999 | |
| 1.34 | -31.00 | 0.72 | -31.00 | 16.24 | 43.76 | -9.94 | 25.94 | 0.3805 | 844.9 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.81 | 15.76 | 43.72 | -9.98 | 26.62 | 0.3738 | 677.0 | 489.5 | |
| 0.00 | 1.52 | 0.00 | 0.82 | 16.72 | 43.61 | -10.09 | 25.71 | 0.3886 | 750.0 | 637.8 | |
| 0.00 | 1.43 | 0.00 | 0.77 | 17.73 | 43.42 | -10.28 | 24.97 | 0.4043 | 840.0 | 713.3 | |
| 0.00 | 2.06 | 0.00 | 1.13 | 18.37 | 41.50 | -12.20 | 28.14 | 0.4271 | 599.0 | 503.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
