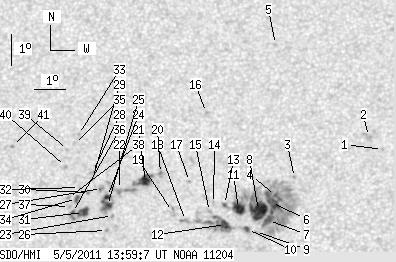

SDO HMI 2011-05-05 13:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 89.70 | 364.25 | 47.53 | 193.18 | 16.47 | 48.37 | -4.78 | 12.87 | 0.3574 | -126.0 | -110.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-05 13:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.48 | 18.22 | 53.56 | 0.41 | 358.96 | 0.3756 | 760.0 | 610.5 | |
| 0.00 | 5.09 | 0.00 | 2.73 | 18.64 | 53.12 | -0.04 | 0.09 | 0.3824 | 647.0 | 627.2 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 17.31 | 50.77 | -2.38 | 6.30 | 0.3629 | 427.0 | 354.6 | |
| 0.89 | 213.45 | 0.47 | 112.82 | 16.73 | 50.18 | -2.97 | 8.08 | 0.3547 | -877.4 | -392.0 | |
| 0.00 | 1.52 | 0.00 | 0.83 | 21.69 | 50.09 | -3.06 | 6.60 | 0.4340 | 819.0 | 594.5 | |
| 14.03 | -4.00 | 7.42 | -4.00 | 16.51 | 50.06 | -3.09 | 8.51 | 0.3513 | -973.0 | 999999 | |
| 6.70 | -4.00 | 3.53 | -4.00 | 15.93 | 49.97 | -3.18 | 9.01 | 0.3421 | -1132.7 | 999999 | |
| 23.41 | -4.00 | 12.36 | -4.00 | 16.25 | 49.65 | -3.50 | 9.73 | 0.3482 | -1152.6 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 15.58 | 49.57 | -3.58 | 10.32 | 0.3375 | -907.0 | -723.4 | |
| 2.68 | 4.56 | 1.41 | 2.40 | 15.64 | 49.32 | -3.84 | 10.99 | 0.3394 | -1017.0 | -784.1 | |
| 9.65 | -4.00 | 5.10 | -4.00 | 16.32 | 49.02 | -4.13 | 11.41 | 0.3512 | -1053.8 | 999999 | |
| 5.81 | 36.01 | 3.06 | 19.00 | 15.81 | 48.62 | -4.53 | 12.81 | 0.3443 | -1033.3 | -588.6 | |
| 1.25 | -4.00 | 0.66 | -4.00 | 16.45 | 48.57 | -4.58 | 12.51 | 0.3548 | -659.1 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.80 | 16.48 | 48.22 | -4.93 | 13.41 | 0.3566 | -277.0 | -293.8 | |
| 0.00 | 1.70 | 0.00 | 0.90 | 16.23 | 48.10 | -5.05 | 13.90 | 0.3530 | 148.0 | 106.0 | |
| 0.00 | 1.43 | 0.00 | 0.77 | 19.45 | 47.91 | -5.24 | 12.34 | 0.4045 | -944.0 | -717.5 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 17.20 | 47.44 | -5.71 | 14.90 | 0.3710 | -763.0 | -603.2 | |
| 0.00 | 4.11 | 0.00 | 2.17 | 15.94 | 47.35 | -5.80 | 16.10 | 0.3517 | 527.0 | 336.3 | |
| 0.00 | 3.75 | 0.00 | 1.99 | 16.23 | 46.93 | -6.22 | 16.95 | 0.3582 | -16.0 | -372.8 | |
| 0.00 | 3.66 | 0.00 | 1.96 | 17.47 | 46.51 | -6.64 | 16.98 | 0.3793 | 921.0 | 689.1 | |
| 6.61 | 14.39 | 3.54 | 7.69 | 17.21 | 46.04 | -7.11 | 18.32 | 0.3777 | 1101.7 | 867.2 | |
| 0.00 | 13.85 | 0.00 | 7.41 | 16.96 | 45.22 | -7.93 | 20.50 | 0.3783 | 758.0 | 831.7 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 16.12 | 45.03 | -8.12 | 21.80 | 0.3668 | 837.0 | 675.8 | |
| 2.50 | 16.53 | 1.34 | 8.82 | 16.74 | 44.85 | -8.30 | 21.61 | 0.3771 | 937.0 | 854.3 | |
| 4.20 | -24.00 | 2.24 | -24.00 | 16.45 | 44.86 | -8.29 | 21.88 | 0.3727 | 1085.6 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 15.64 | 44.86 | -8.29 | 22.74 | 0.3606 | 905.0 | 763.8 | |
| 0.00 | 3.04 | 0.00 | 1.63 | 17.00 | 44.65 | -8.50 | 21.82 | 0.3822 | 942.0 | 799.0 | |
| 0.00 | 2.41 | 0.00 | 1.30 | 17.52 | 44.33 | -8.82 | 22.00 | 0.3919 | 767.0 | 673.9 | |
| 0.00 | 1.34 | 0.00 | 0.72 | 17.29 | 44.34 | -8.81 | 22.21 | 0.3884 | 769.0 | 603.5 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 16.87 | 44.24 | -8.91 | 22.89 | 0.3829 | 920.0 | 804.5 | |
| 8.04 | 13.67 | 4.29 | 7.30 | 16.23 | 44.11 | -9.04 | 23.89 | 0.3742 | 1095.8 | 763.7 | |
| 0.00 | 1.34 | 0.00 | 0.72 | 17.04 | 43.94 | -9.21 | 23.39 | 0.3872 | 816.0 | 599.7 | |
| 0.00 | 1.16 | 0.00 | 0.63 | 18.76 | 43.82 | -9.33 | 21.91 | 0.4133 | 727.0 | 630.4 | |
| 2.68 | 3.48 | 1.44 | 1.87 | 16.68 | 43.86 | -9.29 | 23.95 | 0.3825 | 864.6 | 849.7 | |
| 0.00 | 1.16 | 0.00 | 0.63 | 18.47 | 43.70 | -9.45 | 22.43 | 0.4097 | 814.0 | 665.2 | |
| 1.25 | -31.00 | 0.67 | -31.00 | 16.23 | 43.76 | -9.40 | 24.71 | 0.3766 | 814.1 | 999999 | |
| 0.00 | 1.61 | 0.00 | 0.86 | 16.43 | 43.65 | -9.50 | 24.72 | 0.3802 | 732.0 | 593.6 | |
| 0.00 | 2.14 | 0.00 | 1.15 | 16.72 | 43.60 | -9.55 | 24.50 | 0.3847 | 779.0 | 536.8 | |
| 0.00 | 1.07 | 0.00 | 0.58 | 18.28 | 43.49 | -9.66 | 23.09 | 0.4082 | 677.0 | 494.3 | |
| 0.00 | 1.34 | 0.00 | 0.72 | 17.72 | 43.45 | -9.70 | 23.73 | 0.4004 | 873.0 | 638.7 | |
| 0.00 | 1.34 | 0.00 | 0.73 | 18.40 | 41.70 | -11.45 | 26.64 | 0.4219 | 909.0 | 720.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
