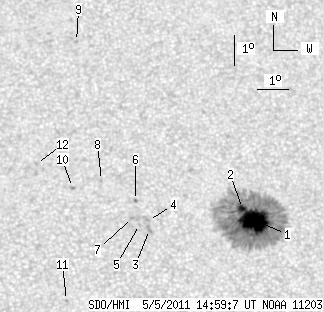

SDO HMI 2011-05-05 14:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 44.67 | 322.23 | 24.08 | 173.66 | 17.90 | 61.04 | 8.44 | 339.24 | 0.3955 | -739.0 | -375.4 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-05 14:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 41.10 | 307.51 | 22.15 | 165.74 | 17.84 | 61.27 | 8.67 | 338.66 | 0.3957 | -1400.2 | -432.1 | |
| 3.57 | -1.00 | 1.93 | -1.00 | 18.23 | 60.90 | 8.30 | 339.84 | 0.3994 | -993.3 | 999999 | |
| 0.00 | 3.57 | 0.00 | 1.91 | 17.52 | 57.90 | 5.30 | 346.34 | 0.3744 | 817.0 | 701.0 | |
| 0.00 | 1.25 | 0.00 | 0.67 | 17.81 | 57.87 | 5.27 | 346.59 | 0.3789 | 711.0 | 629.6 | |
| 0.00 | 1.25 | 0.00 | 0.67 | 17.68 | 57.58 | 4.98 | 347.22 | 0.3758 | 851.0 | 702.4 | |
| 0.00 | 1.43 | 0.00 | 0.77 | 18.46 | 57.48 | 4.88 | 347.94 | 0.3877 | 817.0 | 658.4 | |
| 0.00 | 1.34 | 0.00 | 0.72 | 17.91 | 57.37 | 4.77 | 347.89 | 0.3786 | 772.0 | 646.3 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 19.11 | 56.40 | 3.81 | 350.82 | 0.3948 | 729.0 | 564.5 | |
| 0.00 | 0.98 | 0.00 | 0.55 | 23.76 | 55.70 | 3.10 | 353.87 | 0.4661 | 781.0 | 622.5 | |
| 0.00 | 2.23 | 0.00 | 1.20 | 18.88 | 55.47 | 2.87 | 352.97 | 0.3890 | 829.0 | 594.8 | |
| 0.00 | 0.80 | 0.00 | 0.42 | 15.22 | 55.23 | 2.63 | 352.24 | 0.3292 | 748.0 | 519.0 | |
| 0.00 | 0.89 | 0.00 | 0.48 | 19.66 | 54.33 | 1.73 | 355.91 | 0.3998 | 692.0 | 612.9 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
