SDO HMI 2011-05-05 14:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 94.17 | 364.51 | 49.87 | 193.22 | 16.49 | 48.18 | -4.42 | 11.89 | 0.3565 | -179.9 | -61.4 | |
|
previous
or next observation for the same group /

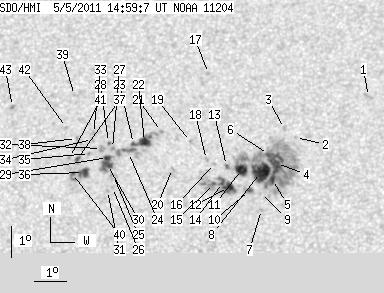

back to the solar disc SDO HMI 2011-05-05 14:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 4.02 | 0.00 | 2.15 | 18.68 | 53.07 | 0.47 | 358.82 | 0.3830 | 709.0 | 607.0 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 17.34 | 50.76 | -1.84 | 4.87 | 0.3625 | 534.0 | 393.3 | |
| 0.00 | 1.70 | 0.00 | 0.90 | 17.64 | 50.41 | -2.19 | 5.71 | 0.3678 | -801.0 | -518.6 | |
| 13.31 | 196.19 | 7.04 | 103.65 | 16.50 | 50.17 | -2.43 | 6.71 | 0.3498 | -1008.4 | -407.4 | |
| 3.39 | -4.00 | 1.79 | -4.00 | 15.99 | 50.05 | -2.55 | 7.23 | 0.3416 | -1154.4 | 999999 | |
| 1.61 | -4.00 | 0.85 | -4.00 | 16.80 | 49.91 | -2.69 | 7.30 | 0.3550 | -733.5 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.70 | 15.03 | 49.72 | -2.88 | 8.59 | 0.3267 | -892.0 | -753.1 | |
| 24.93 | -4.00 | 13.16 | -4.00 | 16.22 | 49.67 | -2.93 | 8.19 | 0.3462 | -1166.0 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 15.54 | 49.68 | -2.92 | 8.46 | 0.3352 | -755.0 | -634.9 | |
| 1.34 | 3.39 | 0.70 | 1.79 | 15.64 | 49.33 | -3.27 | 9.40 | 0.3376 | -1167.4 | -920.4 | |
| 10.10 | -4.00 | 5.33 | -4.00 | 16.32 | 49.07 | -3.53 | 9.79 | 0.3493 | -1049.8 | 999999 | |
| 7.77 | 36.27 | 4.09 | 19.12 | 15.74 | 48.67 | -3.93 | 11.20 | 0.3412 | -1088.1 | -525.8 | |
| 0.98 | 2.86 | 0.52 | 1.51 | 16.45 | 48.59 | -4.01 | 11.00 | 0.3528 | -743.3 | -610.4 | |
| 1.61 | -12.00 | 0.85 | -12.00 | 15.90 | 48.48 | -4.12 | 11.64 | 0.3444 | -865.9 | 999999 | |
| 1.34 | -12.00 | 0.71 | -12.00 | 15.87 | 48.22 | -4.38 | 12.34 | 0.3448 | -738.8 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.71 | 16.51 | 48.21 | -4.39 | 11.98 | 0.3551 | -604.0 | -373.4 | |
| 0.00 | 1.43 | 0.00 | 0.77 | 19.44 | 47.94 | -4.66 | 11.01 | 0.4025 | -787.0 | -598.9 | |
| 0.00 | 1.61 | 0.00 | 0.85 | 16.64 | 47.95 | -4.65 | 12.57 | 0.3581 | -652.0 | -515.8 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 17.23 | 47.43 | -5.17 | 13.53 | 0.3693 | -731.0 | -602.7 | |
| 0.00 | 1.70 | 0.00 | 0.90 | 16.36 | 46.88 | -5.71 | 15.55 | 0.3579 | -475.0 | -320.8 | |
| 0.00 | 1.43 | 0.00 | 0.76 | 17.56 | 46.50 | -6.10 | 15.61 | 0.3783 | 816.0 | 717.9 | |
| 7.59 | 40.02 | 4.06 | 21.38 | 17.24 | 45.97 | -6.63 | 17.15 | 0.3758 | 1107.9 | 760.5 | |
| 1.79 | -22.00 | 0.95 | -22.00 | 17.18 | 45.62 | -6.98 | 18.04 | 0.3765 | 1011.5 | 999999 | |
| 0.00 | 12.51 | 0.00 | 6.67 | 16.89 | 45.47 | -7.13 | 18.66 | 0.3728 | 706.0 | 717.0 | |
| 0.00 | 2.86 | 0.00 | 1.52 | 16.15 | 45.02 | -7.58 | 20.46 | 0.3640 | 497.0 | 506.6 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 15.76 | 45.00 | -7.59 | 20.89 | 0.3582 | 784.0 | 582.0 | |
| 0.00 | 1.34 | 0.00 | 0.72 | 17.02 | 44.95 | -7.64 | 19.77 | 0.3776 | 905.0 | 805.9 | |
| 0.36 | 1.34 | 0.19 | 0.72 | 17.22 | 44.82 | -7.78 | 19.91 | 0.3813 | 867.5 | 768.1 | |
| 3.13 | 15.37 | 1.67 | 8.19 | 16.73 | 44.81 | -7.79 | 20.40 | 0.3740 | 1034.2 | 841.6 | |
| 4.82 | -29.00 | 2.57 | -29.00 | 16.50 | 44.82 | -7.78 | 20.60 | 0.3706 | 1156.3 | 999999 | |
| 0.00 | 1.52 | 0.00 | 0.81 | 15.67 | 44.85 | -7.75 | 21.38 | 0.3577 | 868.0 | 712.3 | |
| 0.00 | 3.93 | 0.00 | 2.10 | 17.02 | 44.60 | -8.00 | 20.60 | 0.3796 | 836.0 | 806.6 | |
| 0.00 | 1.79 | 0.00 | 0.96 | 17.51 | 44.33 | -8.27 | 20.77 | 0.3886 | 825.0 | 717.9 | |
| 0.00 | 1.88 | 0.00 | 1.01 | 17.32 | 44.30 | -8.30 | 21.01 | 0.3858 | 716.0 | 566.0 | |
| 0.00 | 1.34 | 0.00 | 0.72 | 16.87 | 44.23 | -8.37 | 21.64 | 0.3794 | 908.0 | 753.7 | |
| 7.15 | 8.76 | 3.81 | 4.67 | 16.25 | 44.06 | -8.54 | 22.67 | 0.3713 | 1122.0 | 862.9 | |
| 1.79 | 3.48 | 0.96 | 1.86 | 16.71 | 43.85 | -8.75 | 22.68 | 0.3794 | 842.7 | 731.4 | |
| 0.00 | 1.34 | 0.00 | 0.72 | 17.36 | 43.79 | -8.81 | 22.15 | 0.3894 | 735.0 | 626.5 | |
| 0.00 | 1.07 | 0.00 | 0.58 | 18.76 | 43.65 | -8.95 | 21.09 | 0.4110 | 647.0 | 527.9 | |
| 1.16 | 4.47 | 0.62 | 2.38 | 16.23 | 43.71 | -8.88 | 23.53 | 0.3731 | 819.1 | 762.1 | |
| 0.00 | 1.43 | 0.00 | 0.77 | 16.74 | 43.59 | -9.00 | 23.24 | 0.3815 | 761.0 | 632.7 | |
| 0.00 | 0.80 | 0.00 | 0.43 | 17.72 | 43.45 | -9.15 | 22.54 | 0.3968 | 840.0 | 729.7 | |
| 0.00 | 1.70 | 0.00 | 0.93 | 18.42 | 41.67 | -10.93 | 25.58 | 0.4186 | 824.0 | 700.2 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
