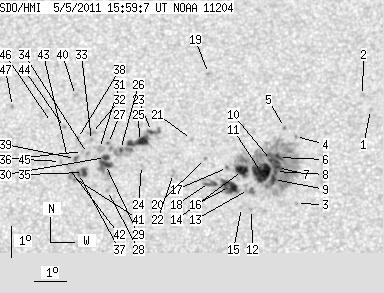

SDO HMI 2011-05-05 15:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 90.31 | 380.38 | 47.83 | 201.47 | 16.44 | 48.22 | -3.82 | 10.32 | 0.3539 | -127.1 | -129.7 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-05 15:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.34 | 0.00 | 0.72 | 18.25 | 53.16 | 1.11 | 357.18 | 0.3765 | 653.0 | 547.2 | |
| 0.00 | 1.79 | 0.00 | 0.96 | 18.71 | 52.91 | 0.86 | 357.87 | 0.3837 | 643.0 | 501.8 | |
| 0.00 | 1.43 | 0.00 | 0.75 | 15.22 | 50.82 | -1.22 | 3.63 | 0.3269 | -944.0 | -714.7 | |
| 0.00 | 1.43 | 0.00 | 0.76 | 17.38 | 50.78 | -1.27 | 3.36 | 0.3623 | 565.0 | 386.4 | |
| 0.00 | 1.34 | 0.00 | 0.71 | 17.67 | 50.43 | -1.62 | 4.22 | 0.3675 | -776.0 | -557.5 | |
| 2.50 | 217.80 | 1.32 | 115.03 | 16.70 | 50.25 | -1.80 | 4.93 | 0.3519 | -882.5 | -406.3 | |
| 1.70 | -6.00 | 0.90 | -6.00 | 16.37 | 50.22 | -1.83 | 5.09 | 0.3466 | -1087.5 | 999999 | |
| 1.52 | -6.00 | 0.80 | -6.00 | 16.25 | 50.16 | -1.89 | 5.30 | 0.3446 | -1123.8 | 999999 | |
| 3.84 | -6.00 | 2.02 | -6.00 | 15.99 | 50.09 | -1.95 | 5.54 | 0.3405 | -1121.5 | 999999 | |
| 1.43 | -6.00 | 0.76 | -6.00 | 16.60 | 50.03 | -2.02 | 5.56 | 0.3506 | -998.2 | 999999 | |
| 23.85 | -6.00 | 12.58 | -6.00 | 16.21 | 49.71 | -2.33 | 6.54 | 0.3449 | -1207.5 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.61 | 15.03 | 49.41 | -2.63 | 7.85 | 0.3261 | -717.0 | -528.0 | |
| 0.00 | 7.59 | 0.00 | 3.99 | 15.67 | 49.31 | -2.73 | 7.87 | 0.3368 | -615.0 | -867.9 | |
| 10.09 | -6.00 | 5.33 | -6.00 | 16.28 | 49.11 | -2.93 | 8.17 | 0.3472 | -1071.2 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 15.09 | 49.10 | -2.95 | 8.74 | 0.3279 | -696.0 | -592.6 | |
| 13.67 | 21.08 | 7.20 | 11.10 | 15.77 | 48.71 | -3.33 | 9.52 | 0.3399 | -988.1 | -724.2 | |
| 0.00 | 2.23 | 0.00 | 1.18 | 16.38 | 48.64 | -3.41 | 9.42 | 0.3500 | -771.0 | -662.0 | |
| 0.00 | 8.67 | 0.00 | 4.57 | 15.90 | 48.08 | -3.97 | 11.20 | 0.3439 | -622.0 | -471.6 | |
| 0.00 | 1.88 | 0.00 | 1.01 | 19.44 | 47.97 | -4.08 | 9.67 | 0.4008 | -853.0 | -514.9 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 16.67 | 47.94 | -4.11 | 11.14 | 0.3568 | -730.0 | -571.7 | |
| 0.00 | 1.43 | 0.00 | 0.76 | 17.29 | 47.48 | -4.57 | 11.97 | 0.3681 | -836.0 | -476.7 | |
| 0.00 | 3.04 | 0.00 | 1.61 | 16.20 | 46.94 | -5.11 | 14.09 | 0.3527 | 57.0 | -228.2 | |
| 1.97 | 40.20 | 1.05 | 21.45 | 17.56 | 46.20 | -5.85 | 14.99 | 0.3772 | 842.8 | 759.1 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 16.46 | 45.92 | -6.13 | 16.54 | 0.3613 | -593.0 | -358.7 | |
| 13.04 | -23.00 | 6.96 | -23.00 | 17.24 | 45.83 | -6.22 | 16.14 | 0.3738 | 1052.6 | 999999 | |
| 1.43 | -23.00 | 0.76 | -23.00 | 16.98 | 45.23 | -6.81 | 17.81 | 0.3727 | 1068.5 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.76 | 17.18 | 44.84 | -7.20 | 18.58 | 0.3777 | 834.0 | 715.9 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 15.66 | 44.87 | -7.18 | 19.94 | 0.3543 | 966.0 | 729.5 | |
| 5.27 | 21.80 | 2.81 | 11.60 | 16.50 | 44.77 | -7.27 | 19.36 | 0.3677 | 1084.6 | 810.9 | |
| 3.39 | -29.00 | 1.81 | -29.00 | 16.73 | 44.77 | -7.28 | 19.17 | 0.3712 | 1088.1 | 999999 | |
| 0.00 | 6.25 | 0.00 | 3.34 | 17.02 | 44.56 | -7.48 | 19.39 | 0.3767 | 878.0 | 724.3 | |
| 0.00 | 3.04 | 0.00 | 1.63 | 17.51 | 44.29 | -7.76 | 19.59 | 0.3856 | 896.0 | 700.4 | |
| 0.00 | 1.25 | 0.00 | 0.67 | 17.28 | 44.30 | -7.75 | 19.78 | 0.3821 | 892.0 | 614.2 | |
| 0.00 | 1.79 | 0.00 | 0.95 | 16.86 | 44.19 | -7.86 | 20.44 | 0.3764 | 992.0 | 720.2 | |
| 4.11 | 8.31 | 2.19 | 4.42 | 16.25 | 44.09 | -7.96 | 21.30 | 0.3677 | 1131.2 | 972.2 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 16.93 | 44.03 | -8.02 | 20.76 | 0.3783 | 626.0 | 484.2 | |
| 1.25 | -35.00 | 0.67 | -35.00 | 16.22 | 43.93 | -8.12 | 21.71 | 0.3682 | 1055.1 | 999999 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 17.35 | 43.85 | -8.20 | 20.76 | 0.3857 | 703.0 | 590.0 | |
| 1.25 | 2.14 | 0.67 | 1.15 | 16.70 | 43.81 | -8.24 | 21.49 | 0.3762 | 812.1 | 708.6 | |
| 0.00 | 2.41 | 0.00 | 1.31 | 18.75 | 43.72 | -8.33 | 19.77 | 0.4074 | 747.0 | 593.1 | |
| 0.00 | 4.73 | 0.00 | 2.52 | 16.12 | 43.71 | -8.34 | 22.34 | 0.3681 | 651.0 | 770.5 | |
| 0.00 | 2.14 | 0.00 | 1.14 | 16.42 | 43.60 | -8.45 | 22.28 | 0.3731 | 593.0 | 524.8 | |
| 0.00 | 1.43 | 0.00 | 0.76 | 16.74 | 43.55 | -8.49 | 22.05 | 0.3782 | 751.0 | 609.6 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 17.71 | 43.41 | -8.63 | 21.40 | 0.3936 | 834.0 | 681.8 | |
| 0.00 | 1.34 | 0.00 | 0.72 | 16.61 | 43.34 | -8.71 | 22.70 | 0.3777 | 651.0 | 524.7 | |
| 0.00 | 0.54 | 0.00 | 0.29 | 17.88 | 42.99 | -9.06 | 22.18 | 0.3986 | 655.0 | 569.5 | |
| 0.00 | 1.34 | 0.00 | 0.73 | 18.41 | 41.70 | -10.35 | 24.39 | 0.4146 | 856.0 | 685.0 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
