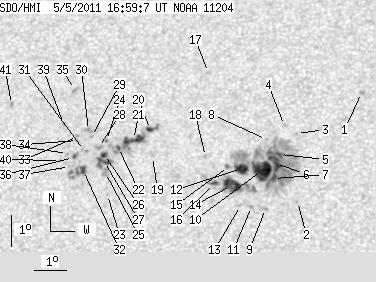

SDO HMI 2011-05-05 16:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 96.65 | 376.86 | 51.11 | 199.41 | 16.41 | 48.29 | -3.20 | 8.65 | 0.3516 | -205.7 | -112.2 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-05 16:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 2.05 | 0.00 | 1.10 | 18.74 | 52.90 | 1.40 | 356.53 | 0.3846 | 771.0 | 613.0 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 15.22 | 50.87 | -0.63 | 1.86 | 0.3264 | -933.0 | -773.8 | |
| 0.00 | 0.71 | 0.00 | 0.38 | 17.41 | 50.83 | -0.67 | 1.76 | 0.3624 | 592.0 | 461.5 | |
| 0.00 | 1.52 | 0.00 | 0.81 | 17.67 | 50.45 | -1.05 | 2.73 | 0.3669 | -667.0 | -555.8 | |
| 2.86 | 208.15 | 1.51 | 109.87 | 16.73 | 50.29 | -1.20 | 3.28 | 0.3517 | -860.9 | -385.8 | |
| 10.09 | -5.00 | 5.33 | -5.00 | 16.44 | 50.17 | -1.32 | 3.68 | 0.3470 | -1050.8 | 999999 | |
| 3.84 | -5.00 | 2.02 | -5.00 | 15.96 | 50.11 | -1.38 | 3.94 | 0.3392 | -1127.2 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 17.21 | 49.88 | -1.61 | 4.31 | 0.3600 | -612.0 | -495.5 | |
| 0.00 | 2.50 | 0.00 | 1.31 | 15.00 | 49.87 | -1.63 | 4.89 | 0.3236 | -841.0 | -607.5 | |
| 25.64 | -5.00 | 13.52 | -5.00 | 16.21 | 49.73 | -1.76 | 4.95 | 0.3439 | -1179.3 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.70 | 15.06 | 49.43 | -2.07 | 6.17 | 0.3254 | -901.0 | -696.7 | |
| 9.92 | -5.00 | 5.23 | -5.00 | 16.28 | 49.10 | -2.39 | 6.68 | 0.3460 | -1086.7 | 999999 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 15.09 | 49.08 | -2.41 | 7.18 | 0.3266 | -635.0 | -559.2 | |
| 15.37 | 51.28 | 8.08 | 26.98 | 15.73 | 48.79 | -2.70 | 7.75 | 0.3377 | -1004.5 | -607.2 | |
| 0.00 | 2.50 | 0.00 | 1.32 | 16.34 | 48.69 | -2.81 | 7.79 | 0.3479 | -773.0 | -678.8 | |
| 2.23 | -14.00 | 1.18 | -14.00 | 15.80 | 48.26 | -3.24 | 9.23 | 0.3401 | -743.5 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.72 | 19.41 | 48.00 | -3.50 | 8.33 | 0.3987 | -813.0 | -488.5 | |
| 0.00 | 1.52 | 0.00 | 0.80 | 16.67 | 47.96 | -3.54 | 9.62 | 0.3550 | -642.0 | -480.8 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 16.68 | 46.28 | -5.21 | 14.02 | 0.3608 | 254.0 | 186.5 | |
| 3.13 | 40.56 | 1.67 | 21.62 | 17.55 | 46.19 | -5.30 | 13.65 | 0.3749 | 894.8 | 749.7 | |
| 10.72 | -20.00 | 5.72 | -20.00 | 17.23 | 45.66 | -5.83 | 15.19 | 0.3720 | 1054.0 | 999999 | |
| 0.89 | -20.00 | 0.48 | -20.00 | 16.98 | 45.19 | -6.30 | 16.55 | 0.3701 | 1002.3 | 999999 | |
| 0.00 | 0.89 | 0.00 | 0.47 | 15.47 | 44.89 | -6.60 | 18.64 | 0.3481 | 894.0 | 733.3 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 17.21 | 44.80 | -6.69 | 17.32 | 0.3755 | 851.0 | 753.3 | |
| 0.00 | 5.09 | 0.00 | 2.70 | 16.17 | 44.81 | -6.69 | 18.20 | 0.3595 | 1029.0 | 794.0 | |
| 2.59 | 13.67 | 1.38 | 7.27 | 16.75 | 44.76 | -6.74 | 17.82 | 0.3688 | 1084.6 | 969.1 | |
| 4.82 | -26.00 | 2.57 | -26.00 | 16.53 | 44.76 | -6.73 | 18.00 | 0.3652 | 1125.4 | 999999 | |
| 0.00 | 3.39 | 0.00 | 1.81 | 16.98 | 44.56 | -6.94 | 18.11 | 0.3733 | 929.0 | 809.3 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 17.34 | 44.32 | -7.18 | 18.37 | 0.3800 | 898.0 | 674.5 | |
| 0.00 | 3.48 | 0.00 | 1.87 | 17.54 | 44.22 | -7.28 | 18.44 | 0.3835 | 768.0 | 658.8 | |
| 0.00 | 2.32 | 0.00 | 1.24 | 16.89 | 44.11 | -7.38 | 19.27 | 0.3742 | 710.0 | 679.3 | |
| 3.84 | 14.47 | 2.04 | 7.69 | 16.24 | 44.11 | -7.39 | 19.89 | 0.3643 | 1114.5 | 845.6 | |
| 0.00 | 1.34 | 0.00 | 0.72 | 17.34 | 43.87 | -7.62 | 19.42 | 0.3824 | 605.0 | 540.8 | |
| 0.00 | 1.16 | 0.00 | 0.62 | 17.21 | 43.88 | -7.62 | 19.53 | 0.3804 | 712.0 | 602.4 | |
| 0.00 | 2.23 | 0.00 | 1.21 | 18.88 | 43.71 | -7.79 | 18.47 | 0.4064 | 588.0 | 566.8 | |
| 0.71 | 2.86 | 0.38 | 1.53 | 16.67 | 43.77 | -7.72 | 20.30 | 0.3726 | 792.2 | 687.2 | |
| 0.00 | 0.71 | 0.00 | 0.38 | 16.38 | 43.66 | -7.84 | 20.86 | 0.3689 | 650.0 | 563.5 | |
| 0.00 | 1.25 | 0.00 | 0.67 | 16.80 | 43.58 | -7.92 | 20.64 | 0.3757 | 769.0 | 574.7 | |
| 0.00 | 1.07 | 0.00 | 0.58 | 17.77 | 43.41 | -8.09 | 20.11 | 0.3914 | 787.0 | 677.1 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 16.57 | 43.36 | -8.13 | 21.37 | 0.3736 | 657.0 | 498.8 | |
| 0.00 | 1.88 | 0.00 | 1.02 | 18.41 | 41.70 | -9.80 | 23.24 | 0.4109 | 908.0 | 641.3 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
