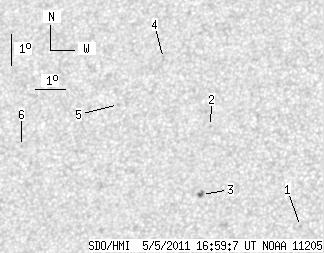

SDO HMI 2011-05-05 16:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 1.97 | 7.76 | 1.07 | 4.31 | 15.20 | 32.54 | -18.96 | 44.18 | 0.4506 | -269.5 | -203.0 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-05 16:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 0.89 | 0.00 | 0.48 | 12.58 | 36.94 | -14.56 | 41.33 | 0.3730 | -709.0 | -503.9 | |
| 0.00 | 0.80 | 0.00 | 0.44 | 15.82 | 33.78 | -17.72 | 41.44 | 0.4443 | -685.0 | -543.9 | |
| 1.97 | 2.68 | 1.07 | 1.46 | 13.65 | 33.66 | -17.83 | 45.17 | 0.4213 | -940.3 | -946.5 | |
| 0.00 | 1.52 | 0.00 | 0.86 | 18.05 | 31.98 | -19.52 | 40.83 | 0.4878 | -603.0 | -462.6 | |
| 0.00 | 0.89 | 0.00 | 0.51 | 16.60 | 30.63 | -20.87 | 44.84 | 0.4861 | 626.0 | 519.4 | |
| 0.00 | 0.98 | 0.00 | 0.56 | 15.33 | 27.47 | -24.02 | 50.71 | 0.5093 | 741.0 | 581.5 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
