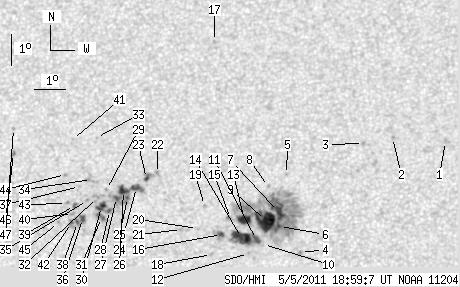

SDO HMI 2011-05-05 18:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing)
(It is recommended to set high resolution on your display!)
| group | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 100.88 | 375.00 | 53.27 | 198.33 | 16.41 | 48.22 | -2.17 | 5.84 | 0.3496 | -208.1 | -74.9 | |
|
previous
or next observation for the same group /
back to the solar disc SDO HMI 2011-05-05 18:59:07 UT
See sunspots with tool (Click here to study sunspot positions and configurations with tool using white-light and magnetogram images and polarity drawing) (It is recommended to set high resolution on your display!) |
| spot | Proj. U | Proj. WS | Corr. U | Corr. WS | B | L | LCM | Pos. angle | r | MU | MP |
| 0.00 | 1.52 | 0.00 | 0.82 | 18.80 | 55.57 | 5.18 | 347.42 | 0.3939 | 799.0 | 584.4 | |
| 0.00 | 0.71 | 0.00 | 0.38 | 18.92 | 53.87 | 3.48 | 351.51 | 0.3909 | 598.0 | 463.2 | |
| 0.00 | 1.79 | 0.00 | 0.96 | 18.72 | 52.94 | 2.55 | 353.70 | 0.3858 | 740.0 | 534.4 | |
| 0.00 | 2.05 | 0.00 | 1.08 | 15.19 | 50.92 | 0.53 | 358.42 | 0.3258 | -942.0 | -711.6 | |
| 0.00 | 0.98 | 0.00 | 0.52 | 17.70 | 50.48 | 0.09 | 359.76 | 0.3670 | -706.0 | -466.6 | |
| 1.52 | 239.60 | 0.80 | 126.36 | 16.02 | 50.26 | -0.13 | 0.36 | 0.3395 | -1071.7 | -408.7 | |
| 11.70 | -6.00 | 6.18 | -6.00 | 16.51 | 50.23 | -0.16 | 0.44 | 0.3474 | -1000.5 | 999999 | |
| 0.00 | 1.34 | 0.00 | 0.71 | 17.31 | 49.91 | -0.48 | 1.27 | 0.3607 | -611.0 | -474.3 | |
| 27.07 | -6.00 | 14.27 | -6.00 | 16.22 | 49.82 | -0.57 | 1.60 | 0.3428 | -1157.5 | 999999 | |
| 0.00 | 1.07 | 0.00 | 0.56 | 15.45 | 49.76 | -0.63 | 1.84 | 0.3301 | -574.0 | -510.2 | |
| 4.38 | -6.00 | 2.30 | -6.00 | 15.61 | 49.54 | -0.85 | 2.47 | 0.3329 | -1124.7 | 999999 | |
| 0.00 | 0.98 | 0.00 | 0.51 | 15.16 | 49.29 | -1.10 | 3.27 | 0.3257 | -788.0 | -691.3 | |
| 9.29 | -6.00 | 4.90 | -6.00 | 16.25 | 49.16 | -1.23 | 3.45 | 0.3438 | -1071.1 | 999999 | |
| 16.53 | -6.00 | 8.68 | -6.00 | 15.67 | 49.07 | -1.32 | 3.82 | 0.3344 | -1049.8 | 999999 | |
| 0.00 | 3.48 | 0.00 | 1.84 | 16.28 | 48.72 | -1.67 | 4.67 | 0.3448 | -751.0 | -571.2 | |
| 2.50 | 8.13 | 1.32 | 4.27 | 15.77 | 48.44 | -1.95 | 5.60 | 0.3368 | -821.1 | -442.8 | |
| 0.00 | 1.25 | 0.00 | 0.69 | 22.10 | 48.13 | -2.25 | 4.78 | 0.4390 | 829.0 | 653.2 | |
| 0.00 | 1.88 | 0.00 | 0.98 | 15.13 | 48.13 | -2.26 | 6.71 | 0.3269 | -667.0 | -585.2 | |
| 0.00 | 1.43 | 0.00 | 0.76 | 16.70 | 47.89 | -2.50 | 6.81 | 0.3531 | -682.0 | -485.1 | |
| 0.00 | 1.43 | 0.00 | 0.75 | 15.96 | 47.68 | -2.71 | 7.67 | 0.3415 | -620.0 | -364.4 | |
| 0.00 | 2.32 | 0.00 | 1.22 | 15.93 | 47.18 | -3.21 | 9.09 | 0.3422 | -752.0 | -518.1 | |
| 0.00 | 2.32 | 0.00 | 1.24 | 17.74 | 46.38 | -4.00 | 10.30 | 0.3736 | 843.0 | 711.5 | |
| 1.43 | 6.25 | 0.76 | 3.34 | 17.58 | 46.04 | -4.35 | 11.25 | 0.3720 | 1000.7 | 748.1 | |
| 4.65 | 34.57 | 2.47 | 18.39 | 17.29 | 45.73 | -4.66 | 12.21 | 0.3684 | 986.5 | 751.0 | |
| 0.98 | -24.00 | 0.52 | -24.00 | 16.97 | 45.45 | -4.94 | 13.12 | 0.3643 | 907.1 | 999999 | |
| 5.90 | -24.00 | 3.14 | -24.00 | 17.20 | 45.32 | -5.07 | 13.31 | 0.3684 | 998.8 | 999999 | |
| 1.79 | -24.00 | 0.95 | -24.00 | 16.97 | 45.10 | -5.29 | 14.00 | 0.3657 | 1131.9 | 999999 | |
| 1.79 | 12.15 | 0.95 | 6.45 | 16.56 | 44.89 | -5.50 | 14.84 | 0.3599 | 1014.2 | 767.6 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 17.24 | 44.78 | -5.61 | 14.64 | 0.3711 | 880.0 | 770.5 | |
| 5.36 | -28.00 | 2.85 | -28.00 | 16.69 | 44.63 | -5.75 | 15.40 | 0.3631 | 1133.6 | 999999 | |
| 0.00 | 6.07 | 0.00 | 3.22 | 16.33 | 44.64 | -5.74 | 15.65 | 0.3575 | 1128.0 | 945.1 | |
| 0.00 | 5.90 | 0.00 | 3.14 | 16.98 | 44.50 | -5.89 | 15.52 | 0.3683 | 912.0 | 742.4 | |
| 0.00 | 1.07 | 0.00 | 0.58 | 18.93 | 44.40 | -5.99 | 14.38 | 0.3991 | 597.0 | 503.2 | |
| 0.00 | 6.79 | 0.00 | 3.63 | 17.56 | 44.29 | -6.10 | 15.60 | 0.3783 | 602.0 | 615.1 | |
| 0.00 | 1.61 | 0.00 | 0.86 | 16.88 | 44.18 | -6.20 | 16.39 | 0.3682 | 870.0 | 741.7 | |
| 2.95 | 13.67 | 1.56 | 7.25 | 16.30 | 44.04 | -6.34 | 17.22 | 0.3598 | 1144.7 | 793.1 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 17.34 | 43.91 | -6.47 | 16.69 | 0.3765 | 630.0 | 454.5 | |
| 1.43 | -36.00 | 0.76 | -36.00 | 16.18 | 43.89 | -6.50 | 17.72 | 0.3586 | 1093.4 | 999999 | |
| 0.54 | 2.41 | 0.29 | 1.28 | 16.73 | 43.78 | -6.61 | 17.53 | 0.3677 | 915.5 | 731.5 | |
| 0.00 | 1.97 | 0.00 | 1.04 | 16.47 | 43.72 | -6.67 | 17.89 | 0.3639 | 833.0 | 651.8 | |
| 0.00 | 0.98 | 0.00 | 0.53 | 18.87 | 43.63 | -6.76 | 16.17 | 0.4014 | 525.0 | 470.6 | |
| 1.07 | -36.00 | 0.57 | -36.00 | 16.18 | 43.70 | -6.69 | 18.21 | 0.3596 | 855.2 | 999999 | |
| 0.00 | 1.43 | 0.00 | 0.76 | 16.79 | 43.52 | -6.87 | 18.11 | 0.3700 | 771.0 | 661.9 | |
| 0.00 | 1.07 | 0.00 | 0.57 | 17.73 | 43.45 | -6.94 | 17.47 | 0.3848 | 897.0 | 671.6 | |
| 0.00 | 1.25 | 0.00 | 0.66 | 16.18 | 43.29 | -7.10 | 19.24 | 0.3618 | 794.0 | 555.4 | |
| 0.00 | 2.32 | 0.00 | 1.26 | 18.43 | 41.75 | -8.64 | 20.72 | 0.4043 | 923.0 | 732.8 | |
| 0.00 | 1.07 | 0.00 | 0.58 | 19.25 | 41.71 | -8.68 | 20.08 | 0.4167 | 824.0 | 532.4 | |
| Proj. U | - Projected umbra area in millionths of solar disc, negative values indicate | |
|
that the umbra consists of fragmented regions which cannot be separated without losing umbral area. In this way several spots (intensity minima in the umbra) have a common umbra, e.g. -2 means that the given spot shares an umbra with spot No.2, and the common U value is indicated at spot No.2. |
||
| Proj. WS | - Projected whole spot area in millionths of solar disc, negative values indicate | |
|
that several umbras have a common penumbra, e.g. -7 means that the given umbra shares a penumbra with umbra No.7, and the WS value is indicated at No.7. |
||
| Corr. U | - Corrected umbra area in millionths of solar hemisphere, for negative values see above | |
| Corr. WS | - Corrected whole spot area in millionths of solar hemisphere, for negative values see above | |
| B | - Heliographic latitude B; positive: North, negative: South | |
| L | - Heliographic longitude L | |
| LCM | - Longitudinal distance from the Sun's central meridian | |
| Pos. angle | - Position angle | |
| r | - Distance from the centre of Sun's disc in terms of Sun's radius | |
| MU | - Mean magnetic field within the umbra contour averaged the pixel values with sign. | |
| MP | - Mean magnetic field within the penumbra contour averaged the pixel values with sign. | |
